- Touchscreen interface
- Volume: 740 L (26,1 ft³)
- Consumes only 10,5 kWh/day (green; -80 °C; 230 V)
- Holds up to 52.800 samples
- Pull-down time to -80 °C: 4 h 10 min
- Interior: Stainless steel; exterior: powder coated steel
- Polyurethane foam + Vacuum insulation panels (body + door)
- 5 compartments with 3 insulated and sealed inner doors
- Left-handed outer door
- Compatible with CO2/LN2 injection system (Type "narrow") as backup for highest sample safety
NL | EUR
No results found
Search Suggestions

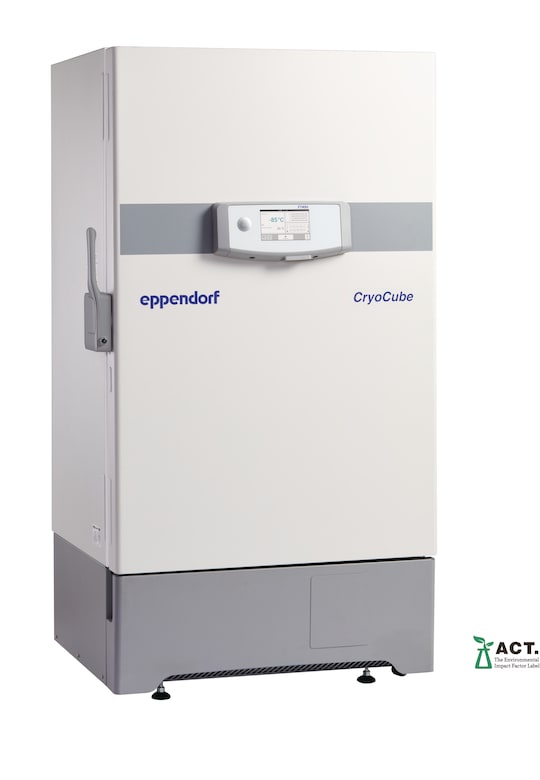

CryoCube® F740hi
Eppendorf CryoCube F740hi ULT freezer: External certification
Certification needed? The Eppendorf CryoCube®_F740hi ULT freezer is certified by ENERGY STAR® and by ACT and has space for up to 576x freezer boxes
Product Information
- 740 L, touchscreen interface, VIP, green cooling liquids, air cooling
- handle left side, 5 compartments, ACT, 230 V/50/60 Hz (EU)
-
Learn more about digital lab solutions
-
Learn more about sustainability at Eppendorf - incl. how to recognize a sustainable ULT freezer
-
Selection tool for Eppendorf racks (please use Mozilla FireFox)
You will find additional download material at the bottom of this page
Technical Data
Features
Technical Data
| Specifications | CryoCube® F740hi, 5 c. |
|---|
| ACT label | yes |
| Cooling type | air cooling |
| Cooling liquid | green cooling liquids (R290 / R170) |
| Heat output | 438 W |
| Insulation | vacuum insulation paneling / polyurethane foam |
| Capacity | 740 L (26,1 ft³) |
| No. of compartments | 5 |
| No. of internal doors | 3 |
| Max. racks per freezer | 30 |
| Noise level | 41.3 dB |
| High-Efficiency | yes |
| Power supply | 230 V, 50/60 Hz |
| Max. power consumption | 10500 W |
| Average Daily Consumption (230 V) | 10.5 kWh/day |
| Average Daily Consumption (208 V) | 10.5 kWh/day |
| Average Daily Consumption (115 V) | 11.6 kWh/day |
| Dimensions (W × D × H) | 111 × 98,0 × 197,3 cm / 43,7 × 38,6 × 77,7 in1)2)3) |
| Shipping weight | 382 kg / 806 lb |
| Product weight | 333 kg / 734 lb |
| Temperature range | |
| Access port | 2 |
| Remote Device Monitoring and Notifications (VisioNize®) | VisioNize® touch enabled |
| Pull-down time to -80 °C | 4 h 10 min4) |
|
Box capacity per freezer |
|
| 53 mm (2 in) tall boxes | 528 |
| 64 mm (2.5 in) tall boxes | 408 |
| 76 mm (3 in) tall boxes | 288 |
| 102 mm (4 in) tall boxes | 264 |
| 127 mm (5 in) tall boxes | 48 |
|
DWP capacity per freezer |
|
| 102 mm (4 in) tall boxes | 792 |
|
Box capacity per rack |
|
| 53 mm (2 in) tall boxes | 16 |
| 64 mm (2.5 in) tall boxes | 12 |
| 76 mm (3 in) tall boxes | 8 |
| 102 mm (4 in) tall boxes | 8 |
| 127 mm (5 in) tall boxes | 8 |
| DWP | 24 |
|
Included |
|
| CO2 backup system | no |
| LN2 backup system | no |
| Chart recorder | no |
1)Optional CO2/LN2 backup systems add 8.65 cm/3.5 in to height.
2)To allow for handles and hinges, add 80 mm to width of upright freezers and 110 mm to the depth of chest freezers.
3)Door open adds up to 15 cm.
4)Empty freezer with shelves fitted, upright freezers only, pull down from 21 – 23 °C ambient conditions.
