How do I connect pipettes with the Eppendorf Pipette Manager?

Simply upgrade your electronic pipette with an Eppendorf Xplorer ® connect module and connect it with the supplied USB cable to the Pipette Manager. The Pipette Manager will notify you if an update is required. Once the update is performed, turn the selection dial to Opt. Select Wi-Fi and Connect AUTO. On the Pipette Manager, select Menu, Pipette Manager, Pair New Pipette and wait for approx. 20 sec.

How do I connect a tablet with the Eppendorf Pipette Manager?

Simply scan the QR-codes under Menu, Settings, System Settings, Network, Wi-Fi Access with your tablet. Scan Wi-Fi Access with QR Code to access the WiFi of the Pipette Manager. Then scan Access Interface to open the Pipette Manager interface in the tablet's browser.

How can I update my Pipette Manager if new features are available?

You can acquire new features for free by downloading the latest software version from the Eppendorf Download Center and transferring it to the Pipette Manager using an USB drive. The update can be started by selecting Menu, Settings, System Settings, Update Software. The software update does not remove any data or settings from your device.

How many pipettes can I connect with one Eppendorf Pipette Manager?

The Pipette Manager provides 30 open connections which you can use to connect either pipettes or tablets to manage connected pipette sets. Example set ups for 5 or 6 workspaces: a) 1 Pipette Manager + 4 tablets each connected to a pipette set of 5 pipettes. b) 1 Pipette Manager + 5 tablets each connected to a pipette set of 4 pipettes.

Do I need an internet connection to use the Eppendorf Pipette Manager?

No. The Pipette Manager uses the built-in WiFi to establish connections to electronic pipettes upgraded with an Eppendorf Xplorer ® connect module or tablets. It does not connect to the internet.

Do I need a VisioNize ® Lab Suite subscription to use the Eppendorf Pipette Manager?

No. The VisioNize ® Lab Suite cloud solution for remote device monitoring and maintenance scheduling is a separate product offering. No subscription plan is needed to work with the Pipette Manager.

Can I set up different user accounts and rights on the Eppendorf Pipette Manager?

The Pipette Manager offers a user management with different accounts protected with a PIN or password. For each account, you may set a different user role with restricted, standard or administrator rights.

Can I protect the Eppendorf Pipette Manager with a password?

It is possible to activate the user management and protect different user accounts with a PIN or password. In addition, the user accounts can be defined with different access levels.

Which pipettes can I connect with the Eppendorf Pipette Manager?

All Eppendorf Xplorer ® /Xplorer plus and Xplorer plus Move It ® pipettes manufactured since 2015 (with an on-off push button instead of a switch) can be connected with the Pipette Manager after upgrading them with an Eppendorf Xplorer ® connect WiFi module. The corresponding Eppendorf Xplorer software version to connect a pipette to the Pipette Manager is 03.01.00 or later. We recommend to always use the latest software version. In order to find out the software version of your pipette, please check via: Options, Service, Software version. The pipette software can be updated by using the Eppendorf Pipette Software Update Tool or by connecting your pipette to the Pipette Manager with the included cable.

What do I do when a connected pipette disconnects from the Eppendorf Pipette Manager?

Turn the selection dial of the pipette away from Opt once and then back. Go to Wi-Fi and Recent connections where the name of your Pipette Manager should be highlighted. Select Connect and wait up to 2 min.

Does working with the Eppendorf Pipette Manager require pre-programming?

No, the Pipette Manager is designed for flexible and spontaneous pipetting and rapid adjustments of workflows.

How are connected Eppendorf Xplorer ® pipettes calibrated?

The calibration of connected electronic pipettes can be done with or without the Pipette Manager just like the calibration of any other electronic pipette by a professional pipette service provider like epServices or following the Standard Testing Procedure for Manual Dispensing Systems provided by Eppendorf.

Which liquid types are pre-defined on the Eppendorf Pipette Manager?

The built-in Liquid Manager of the Pipette Manager offers 7 pre-defined Eppendorf Liquid Types: Ethanol, Methanol, Acetone, Enzymes / Antibodies, Triton X-100, Triton X-100 (epT.I.P.S. ® LoRetention), and Tween 20.

Can I define own liquid types when working with the Eppendorf Pipette Manager?

Yes, you can define your own liquid types by selecting the vapor pressure, dynamic viscosity and the desired piston speed.

How does the built-in Liquid Manager support me, when I select a liquid type on the Eppendorf Pipette Manager?

Depending on the liquid type, the Pipette Manager will automatically include required pre-wetting steps, define the appropriate pipetting speed or disable unsuitable operating modes. These functions can be customized by defining your own liquid types, which can be shared with your colleagues.

Can I use connected Eppendorf Xplorer ® pipettes without the Pipette Manager?

If you want to use a connected pipette without the Pipette Manager, you can simply turn the selection dial from Opt to any operating mode you want and use it as any other non-connected pipette.

How can I decontaminate the Eppendorf Pipette Manager?

To clean the housing moisten a cloth with cleaning agent and remove external contamination. Wipe down the housing with water afterwards. To clean the touch screen, select Menu - Clean Screen. Wipe the glass plate of the touch screen with a cloth and a mild cleaning agent. Touch the corners in the numbered sequence to unlock the touch screen.

Is there a difference between connecting an Eppendorf Xplorer ® or Xplorer plus pipette to the Pipette Manager?

There is no difference between connecting Eppendorf Xplorer or Xplorer plus pipettes. All features of the Pipette Manager are available on both models – Xplorer pipettes even gain additional pipetting modes (Sequential Dispensing, Sequential Pipetting, Diluting, Reverse Pipetting, Multi Aspiration). The Programming mode as well as the History and Adjustment features can be exclusively used with Xplorer plus pipettes in offline mode though.

Is it possible to set the Pipette Manager to different languages like the Eppendorf Xplorer ® software?

No, currently the Pipette Manager software is only available in English.

Does the Eppendorf Pipette Manager record every pipetting step I do?

You can turn the Pipetting Records mode on and off whenever you want. You can always pause a recording and work without or switch to another recording and continue. Once you finished the steps you want to record, you can finish the recording and export it for documentation.

Which details can be documented by the Eppendorf Pipette Manager?

When using the Pipetting Records mode, the Pipette Manager will document: User, date, time, pipette (serial number), volume, operating mode, liquid type, speed and pause/continue activities. In addition, general data such as device name, product name, serial number and software version are recorded.

The battery provided with the Eppendorf Xplorer connect WiFi module looks smaller. Does it have less capacity?

The battery capacity is slightly smaller: 700mAh (the old one is 750mAh). The new battery has an increased energy density. For this reason it was possible to give it a smaller shape.

text.skipToContent text.skipToNavigation

CN | CNY

未找到任何结果

搜索建议

产品系列

Show all Product Families ()

文章

Show all Articles ()

内容

Show all Content ()

Pipette Manager

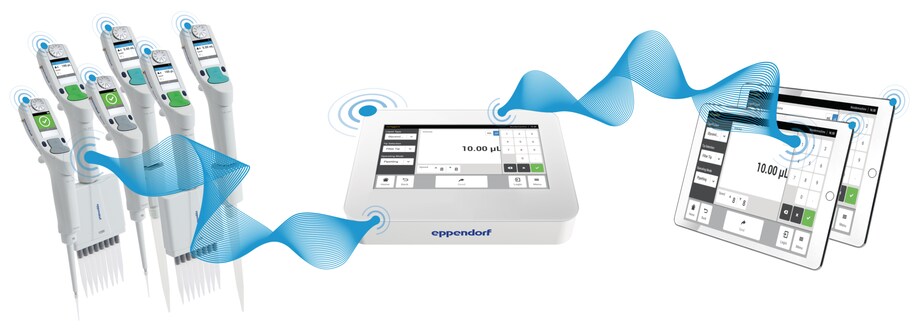

A Pipette Manager is connected to an Eppendorf Xplorer® plus electronic pipette

Female scientist pipetting with an Eppendorf Xplorer® connected electronic pipette managed via the Pipette Manager system

Connect tablets to the Pipette Manager system to work with several users

Export Pipetting Records or easily update the software of your Pipette Manager via USB

产品信息

使用Eppendorf Pipette Manager轻松进行移液操作。通过触屏快速设置移液体积，预定义移液设置有助于处理挑战性液体，并以数字方式记录移液步骤。该独立系统即插即用，最多可连接30个Eppendorf Xplorer^®、Xplorer plus或Move It^®电动移液器和平板电脑。
在移液方面，谁还没有享受到更大的自由和便利？遥遥领先！切换到已连接电子移液器并提高您的个人移液技能，同时将团队合作提升到新的水平。

• 您可以多快速度在电子移液器中设置参数？通过触屏选择移液体积和速度可以加快操作速度
• 处理挑战性液体时，您的移液结果有多准确？预定义和自定义挑战性液体可以提高移液准确性
• 您如何记录移液步骤？数字记录移液步骤有助于增强信心

选择Pipette Manager，改进常规移液工作！

显示更多产品信息

从Eppendorf了解关于其他数字化实验室解决方案的更多信息

索取演示版

您可以在以下网址找到其他下载资料本页面底部

产品 (2)

备件 (2)

2 产品

Pipette Manager

外接触屏服务器保障与连网电动移液器之间通信顺畅

更多产品详情...

数量

库存状态

目录编号 1004000001

价格

¥ 14,796.00

查询

The Wifi module is going to be attached to the Eppendorf Xplorer electronic pipette.

Eppendorf Xplorer^®连接

WiFi模块可将Eppendorf电动移液器与 Pipette Manager相连

更多产品详情...

数量

库存状态

目录编号 4861000970

价格

¥ 1,253.00

查询

显示更多产品

已添加到您的购物车

产品信息

用途

特征

Pipette Manager是一个配备触屏的独立控制面板，可通过安全的专用WiFi网络管理Eppendorf Xplorer^®, Eppendorf Xplorer^® plus和Move It^®电动移液器。享受更快的操作、获得更高的可重复性并对每个步骤进行数字化记录。通过数字化演示工具了解Pipette Manager连接的电子移液器系统，体验电子移液的新时代。

速度更快

通过Pipette Manager触屏可以快速、轻松地输入移液体积和速度。所有设置都将立即传输至选中的连网电动移液器，并立即开始移液操作——无需进行复杂的预编程！

更加准确

理粘稠、挥发性和其他难处理的液体类型时，嵌入软件的»Liquid Manager«可为您选择最适合的移液设置（如预润湿、吸液和分液速度）。
从预定义Eppendorf液体类型中进行选择，如乙醇、酶/抗体或Tween^® 20并创建您自己的自定义液体类型。

更加放心

动记录每个移液步骤，并可通过USB轻松导出记录（专业PDF格式）。记录内容包括时间、移液器序列号、移液模式、体积和每个移液步骤所选择的液体类型。

更有条理

提高移液器管理效率，加强团队协作。借助»Pipette Set«功能，您可以对所有连网的电动移液器进行分组和一目了然地查看可用设备，并同时向所有移液器发送设置，确保为即将到来的任何移液任务做好准备。此外，有了»Liquid Type Sharing«,，您还可以通过WiFi或USB与其他Pipette Manager用户交换自定义液体类型。

及时进行软件更新

通过可选的软件更新保持您的Pipette Manager顺利运行。我们的更新不仅可修复可能出现的任何问题，还将加入新的功能来改进您的体验。确保经常查看我们的软件下载页面，了解是否有新的更新，随时了解最新进展。您也可以利用Pipette Manager不断更新Xplorer、Xplorer plus和Xplorer plus Move It移液器。
