- Quiet operation provides a favorable work enviornment
- Built to perform and last: Innova triple-eccentric counterbalanced drive in cast iron housing provides vibration and trouble-free operation for years
- 1.9 cm and 2.54 cm (3/4" and 1") orbits are available to meet your application needs
- Save space on your lab bench: Small footprint of 55.9 × 76.2 cm / 22 × 30 in (W x D) that even works on narrow benches
- Wide temperature range- Innova 40: 10 °C above ambient to 80 °C. (Innova 40R: 20 °C below ambient to 80 °C)
- Minimizes splashing and mechanical damage: Acceleration/deceleration circuit prevents sudden starts and stops
- Easy to move: 60/79 kg weight (incubated/refrigerated version)
- Versatile 46 cm × 46 cm (18" × 18") accessory platforms (sold separately) accommodates flasks up to 3 L as well as test tube racks and Microplate holders
- Certified: Meets cETL, UL, CSA and CE standards
- Reliable service: For service agreements including annual full preventive maintenance or IQ/OQ GxP qualification contact your Eppendorf representative
TW | TWD
No results found
Search Suggestions

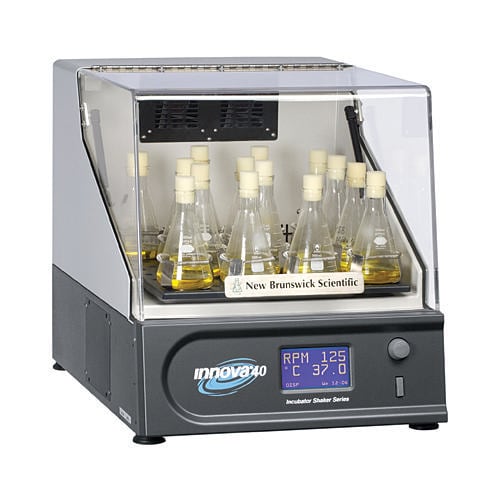

New Brunswick Innova® 40
Innova 40
Product Information
non-stackable, 120 V/50/60 Hz (US), orbit 2.5 cm (1 in)You will find additional download material at the bottom of this page
Technical Data
Features
Technical Data
| Specifications | Innova® 40, orbit diameter 2.5 cm (1 in) |
|---|
| External height (with lid/door open) | 101.6 cm (40 in) |
| Timer | 0.01 – 99.59 h, continuous |
| Power supply | 120 V, 50/60 Hz |
| Dimensions (W × D × H) | 55.9 × 76.2 × 61 cm / 22 × 30 × 24 in |
| Product weight | 60.3 kg / 133 lb |
| Temperature range | Ambient +10 °C to 80 °C |
| Audible and visual alarms | yes |
| Temperature uniformity | ±0.25 °C at 37 °C |
| Available program modes |
• Constant speed and temperature • Programmable multi-steps • RS-232 communication port |
| Drive mechanism | triple-eccentric counterbalanced drive |
| Benchtop (B), Under Bench (U), Floor (F) or Stackable (S) | B |
| Memory | non volatile with automatic power failure restart |
| Motor type | Solid state, DC brushless motor |
| Platform size (cm/in) | 46 × 46 cm (18 × 18 in) |
| Refrigerated | − |
| Slide-out platform | no |
| Door opening | top opening hood |
| Speed range | 25 up to 500 rpm (depending on load) |
| Multi-step programming | yes |
| Steps per program | 15 |
| Stored programs | 4 |
| cETLus and CE marked | yes |
| Capacity | medium |
| Programming steps / storable programs | 15/4 |
| Remote Device Monitoring and Notifications (VisioNize®) | VisioNize® box enabled |
| Temperature range | 10 °C above ambient to 80 °C |
|
Agitation |
|
| Orbit | 2.5 cm (1 in) |
