How many speed-controlled pumps do the DASGIP bioreactors feature?

Up to eight peristaltic speed-controlled pumps per vessel offer continuous flow rates from 0.3 mL/h - 5 L/h. Each pump can be operated independently. Two different pump head sizes for the multi pump modules DASGIP MP4 and MP8, fitting various tube sizes make the DASGIP multi pumps a flexible and accurate solution.

Do stainless steel components bear any risk of corrosion?

As it is highly resistant to most laboratory chemicals, stainless steel, e.g. 1.4571 (AISI-316Ti), 1.4404 (AISI-316L), is used for wetted parts in DASGIP Bioreactor Systems. A passive coating made of chrome oxide protects the steel from oxidizing agents. Despite these protective properties, corrosion can still occur in extreme situations such as mechanical surface damage or when the parts come in contact with concentrated acids or alkaline solutions. An indication of corrosion can be discoloration that is visible even after a thorough cleaning (ultrasonic bath with an approved stainless steel cleaning solution).

text.skipToContent text.skipToNavigation

JP | JPY

結果がありません

検索の提案

製品群

Show all Product Families ()

商品番号

Show all Articles ()

コンテンツ

Show all Content ()

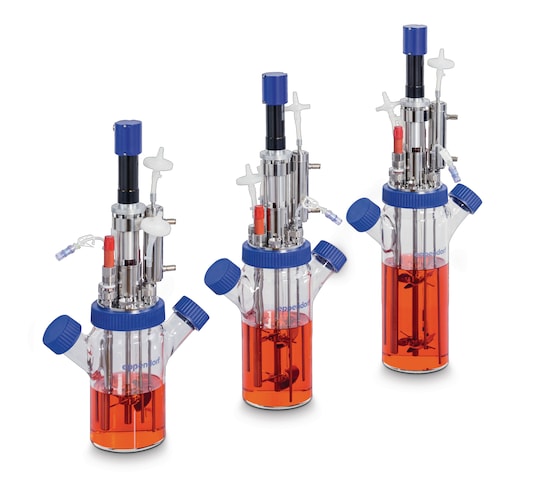

DASGIP^® Bioblock/SciVario^® twin Spinner Vessels

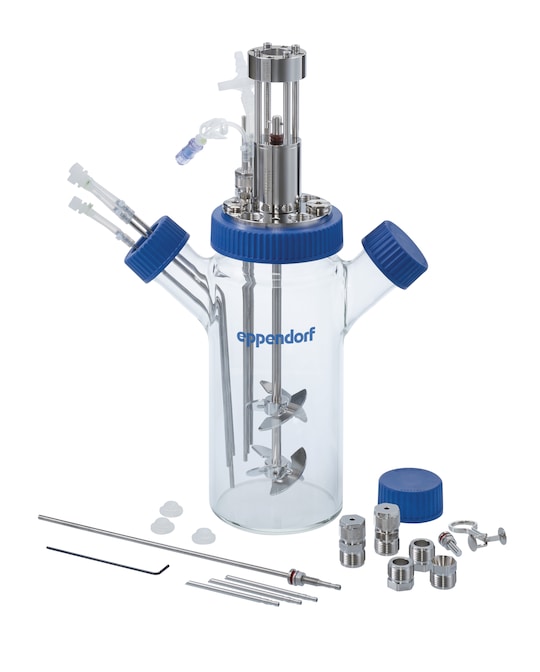

DASGIP Vessel 2x pitched-blade impeller, GL45 side arms, overhead drive

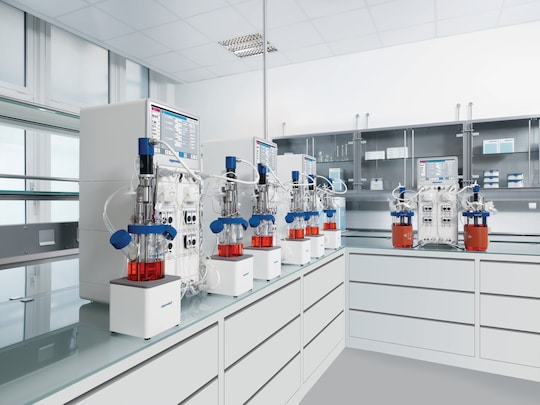

DASGIP Parallel Bioreactor System for Cell Culture Bioblock

製品情報

The DASGIP Bioblock/SciVario twin Spinner Vessels are fully instrumented glass bioreactors for cell culture applications. They are compatible with the DASGIP Parallel Bioreactor System and the SciVario twin bioreactor system. Three variants cover a working volume range from 250 mL to 1.5 L and are perfectly suited for research and process development.

製品情報をもっと見る

追加でダウンロードできる材料がありますこのページの最後に

製品 (3)

Services (4)

アクセサリー (13)

3 製品

DASGIP^®容器

DS0700ODSS、250mL – 700 mL、2x GL45 サイドアーム、オーバーヘッドドライブ
ピッチ配置ブレードインペラ―、DASGIP^® Bioblock

製品のさらなる情報

カタログ番号 76DS0700ODSS

DASGIP^®容器

DS1000ODSS、350 mL – 1.0 L、2x GL45サイドアーム、オーバーヘッドドライブ
2 枚ピッチブレード撹拌羽根、DASGIP^® Bioblock

製品のさらなる情報

カタログ番号 76DS1000ODSS

DASGIP^®容器

DS1500ODSS、350 mL – 1.5 L、2x GL45サイドアーム、オーバーヘッドドライブ
2 枚ピッチブレード撹拌羽根、DASGIP^® Bioblock

製品のさらなる情報

カタログ番号 76DS1500ODSS

製品をもっと見せる

お客様のショッピングカートに追加されました。

製品情報

アプリケーション

特徴

Eppendorf offers a line of advanced autoclavable spinner vessels suitable for temperature control with the compact DASGIP Bioblock and SciVario twin temperature control block. These overhead driven spinner vessels feature a stainless steel head plate with standard ports, pitched-blade impellers, and two side arms. Covering a working volume range of 200 mL – 1.5 L they are perfectly suited for cell culture research and process development.
