The SafeCode enables unambiguous identification of the sample. It encodes a number assigned by Eppendorf, which is unique for each Eppendorf Consumable. On the other hand, via the Eppendorf Website or with the help of eLabInventory/eLabJournal, the sample identification can be digitally supplemented by consumable information (e.g. quality certificate, purity, volume, article number). But, the SafeCode is more than just a data matrix code with ECC200 error correction. It also provides the ability to easily and document the used vessel completely digitaly.

What is data matrix code?

A data matrix code is a 2D barcode. It is a picture of dates and symbols. Data in a Datamatrix code is machine-readable using optical readers, such as camera scanners, and processed electronically.

How can it be determined that a code has not been awarded twice?

Eppendorf guarantees that all SafeCode IDs are only used once for Eppendorf products across all products. As the SafeCode ID consists of two letters and ten (microtubes, conicals and plates) or eight digits (cryostorage vials), chances are extremely low (1:2.7e10 and 1:2.7e8 respectively) anyways to receive the same ID twice.

What kind of devices and software is needed to use the SafeCode system?

To read and process the SafeCode system, a Datamatrix code compatible reader and GS1-128 compliant software is needed. Optimum use is ensured by the RackScan b and RackScan s, as well as eLAB Inventory.

Is it possible to store samples in Eppendorf SafeCode consumables in the freezer?

Yes, the SafeCode consumables (SnapCap tubes, concial tubes, plates and CryoVials) can be stored down to -86 °C.

For what applications are SafeCode consumables suitable for?

They can be used as usual consumables in any application they are normally used. In addition to that, the SafeCode consumables offer enormous benefits when fully digital sample tracking and information archiving is required, as they are pre-labeled barcoded vessels with 2-level-coding (tubes, and conceals) or 3-level-coding (CryoStorage Vials and plates) in different formats. These enable you to improve your processes, by allowing to download all relevant, ID-specific documentation for your vessel (certificates, technical drawings, lot numbers, and supplier order numbers) using the Eppendorf DataPort on the Eppendorf website and allows you to manage your coded samples with sample management software like eLabInventory.

What is SafeCode and what information does it encode?

The SafeCode is a pre-labelled and durable coding on consumables (data matrix code and clear coding). The SafeCode ID is a serial number issued by Eppendorf that is unique to every Eppendorf SafeCode Consumable. This facilitates a precise tracing of samples in the laboratory. Additionally, this ID links all the relevant product data and product specific documents, such as lot number, technical data and certification of conformity. This data can be accessed via the Eppendorf dataport on the Eppendorf website.

Is it necessary to buy new equipment to be able to use Eppendorf SafeCode consumables?

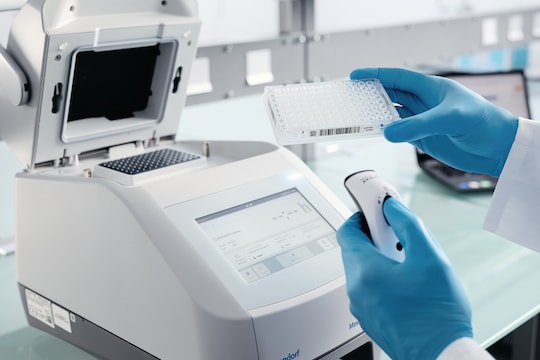

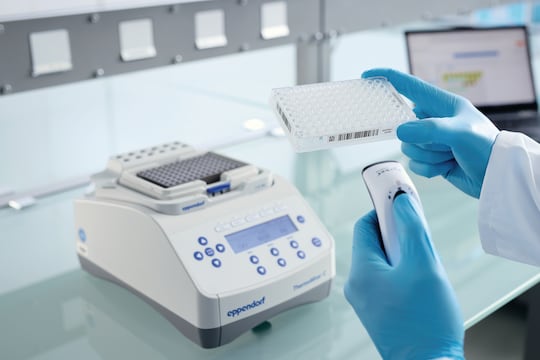

The SafeCode data matrix code can be read with hand-held scanners (smartphones app may also be possible). The hand-held scanner ultimately functions like a keyboard and can be connected to every computer in the same way. Alternatively, the user can read the clear-text code manually and thus no additional equipment is necessary. Correspondingly, entries in LIMS or ELN software like eLabNext can be made via a scanner for the 2D (or 1D for plates) code, but also via the keyboard for the human readable code.

Are Eppendorf SafeCode consumables autoclavable?

SafeCode Consumables are not suitable for autoclaving. Where applicable it´s recommended to select a pre-sterilized option (of conical tubes, cryostorage vials).

Are SafeCode labels resistant to chemicals?

SafeCode consumables have same resistance as the standard consumables (without the SafeCode) please refer to the respective Application Note 056 or Instructions of Use for more details.

text.skipToContent text.skipToNavigation

CN | CNY

未找到任何结果

搜索建议

产品系列

Show all Product Families ()

文章

Show all Articles ()

内容

Show all Content ()

SafeCode工作板

1/12

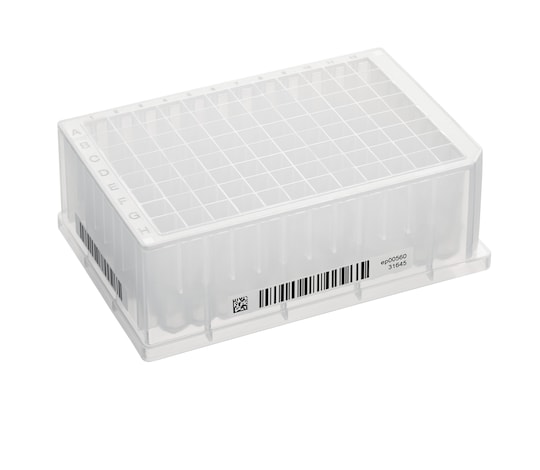

Barcoded Eppendorf DWP 1,000 µL with SafeCode for high-throughput sample handling and longterm storage within ULT freezer

产品信息

您是否正在努力记录升级后的样品编号？

从单个试管或容器升级到96孔甚至384孔工作板，有利于在实验室中处理和储存数千甚至数百万份样品。高通量筛选或储存变得日益重要。对您的样品进行安全和唯一性识别也是如此。

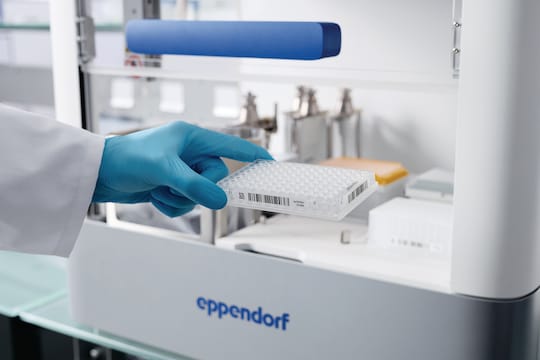

为提高实验操作过程中和自动液体处理系统对样品的识别效率，或为提高ULT超低温冰箱空间利用率和样品长期保存安全性，建议使用条形码识别工作板。Eppendorf Plates 工作板的 SafeCode系统基于 3 级编码，能够通过条形码确保安全地识别样品。
：-耗材预贴条形码是一种可靠且安全的样品读取方式，尤其是当与Eppendorf dataport保存的其他工作板信息结合使用时。

显示更多产品信息

您可以在以下网址找到其他下载资料本页面底部

产品信息

特征

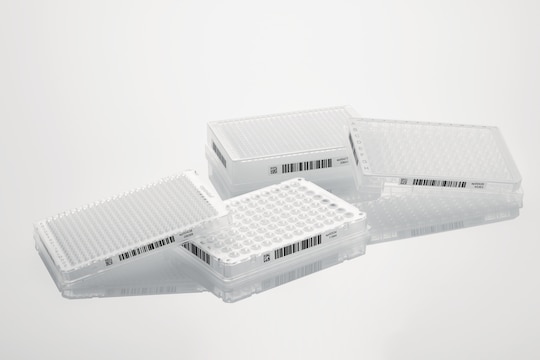

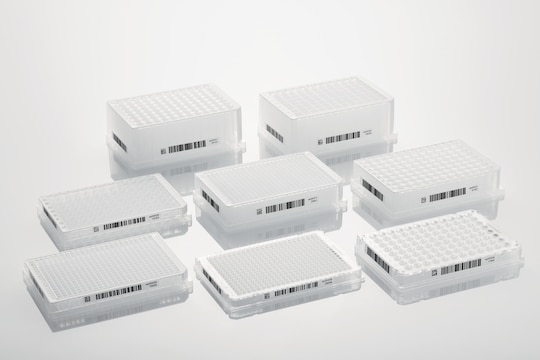

Eppendorf Plates 充分利用SafeCode系统的三级编码SafeCode（datamatrix code,线性barcode,和简明用语/人类可读），确保安全识别样品。工作板类型包括PCR、MTP以及DWP，适用于多种应用。SafeCode 工作板是进行现代化高密度样品处理的解决方案，具有卓越的样品安全性，可满足管理和跟踪需求。在线数据端口可根据每个工作板代码提供有关样品孔板的其他信息。

想要给您的容器标签编码？

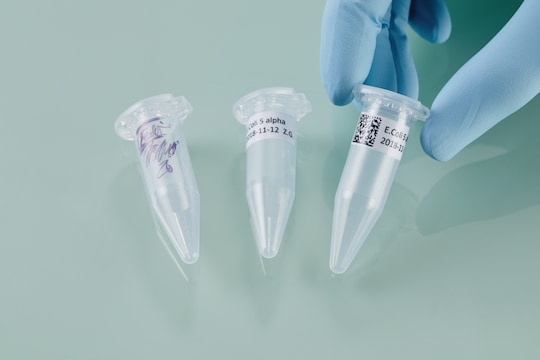

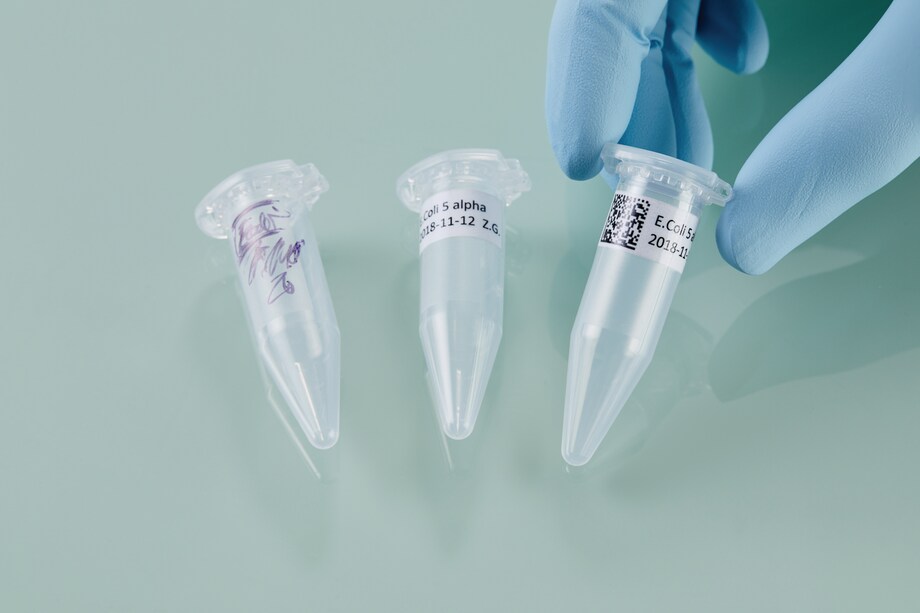

“样品储存容器必须贴有标签”，这是所有实验室工作人员的共识。但实际工作中，您总能在冰箱或冰柜里发现一些没有标签或标签模糊的样品容器。建议贴上尽可能清晰且持久的标签。样品容器上贴有用语简明的打印标签是确保可靠读取的基本条件， Barcoding 是实现快速、安全识别样品的进一步保证。
barcode 条形码是数据的一种光学表现，可以通过机器读取。

需要样品 ID？

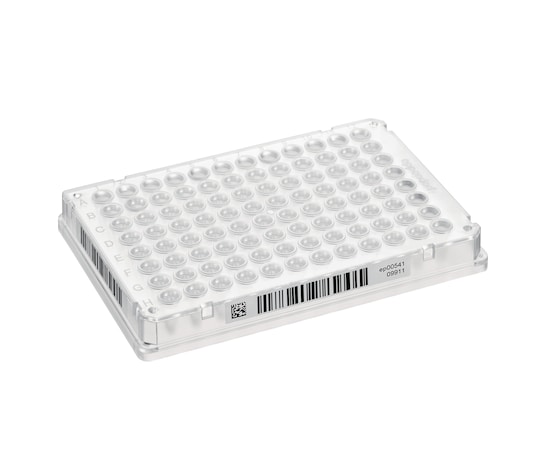

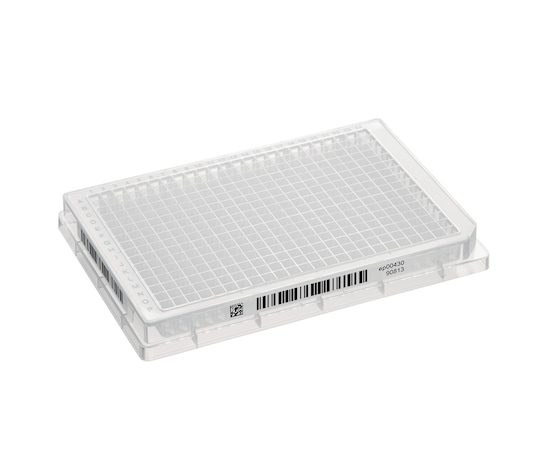

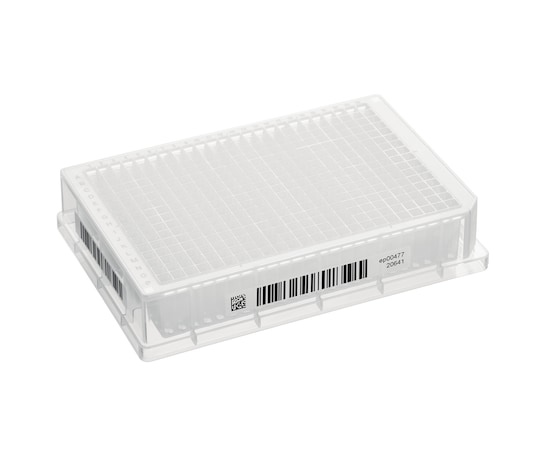

Eppendorf Plates通过3-level coding三重编码方式助您安全、快捷地识别样品：
• 一维barcode
• 简明编码
• 具备ECC 200纠错功能的2Ddatamatrix code编码

编码位于孔板三个侧面：
• 西面（线性barcode）、
• 南面（QR码，线性barcode，人类可读编码）
• 和东面（线性barcode）

需要纸质记录？

出于认证目的，越来越多的操作者需要记录所有实验信息。孔板是实验室工作流程的一个重要部分。因此，登录Eppendorf网站并输入每个工作板的条形码，即可查询批号、订单号、证书等其他孔板信息。信息可以手动导出至本地数据库或自动传输至样品管理软件 Eppendorf eLabInventory 或 eLabJournal。

是否需要个性化的孔板条形码？

由于既定工作流程和数据管理步骤，一些工艺需要针对孔板定制barcodes条形码。
Eppendorf Plates，例如Eppendorf twin.tec^® PCR Plates、Deepwell Plates以及Microplates等可以使用定制的一维barcodes条形码进行贴标。
该过程通过 Eppendorf barcode wizard 进行处理。
请访问
Eppendorf条形码向导了解更多信息

您是否为不舒服的操作方式困扰？

人体工程学并非仅限于“人体工程学座椅”。Eppendorf 早在20 世纪70 年代初就已开始从人体工程学角度优化实验室设备。
2003 年，我们发起了PhysioCare Concept，着力研发人体工程学设计的液体处理设备，如移液器。
如今，Eppendorf PhysioCare Concept已经扩展至其他实验室产品，成为平衡实验室的工作流程与个人健康福祉的整体解决方案。Eppendorf Plates具有以下SafeCode特征：
• 易于阅读的三级编码，包括便于人类阅读的清晰编码
• 高对比度孔井标签，便于舒适阅读

有关Eppendorf PhysioCare Concept的更多信息：
Eppendorf PhysioCare

样品杂乱无章？可以让您的样品井然有序！

通过多年的科研工作，您收集了成百上千的样品，这些样品都是您努力工作的成果，也包括珍贵的样品。储存这些样品时，确保其安全且易于取放至关重要。

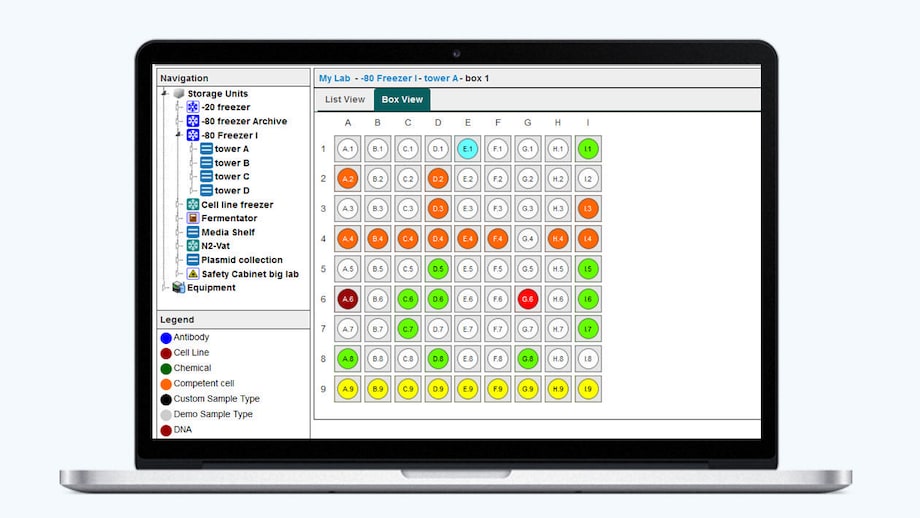

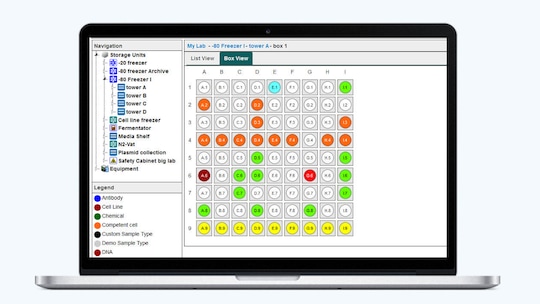

很多科研人员仍然使用电子表格甚至使用纸质列表来记录他们的样品储存情况。虽然在大多数情况下，这些方法都可以奏效，但容易出现人工错误、损坏和混淆。可以使用 Eppendorf eLabInventory（一款样品管理软件）来追踪您的样品。

免费试用 30 天！
查看eLabInventory

早已厌倦纸质记录？

eLabJournal Electronic Lab Notebook为文献研究和研究数据追踪（如涉及样品跟踪的工作流过程）提供了直观而灵活的解决方案。提高记录、整理、搜索和归档已收集数据的效率。通过免费的eLabJournal add-ons，您可以扩展eLabJournal功能，形成一套完全集成的实验室信息管理系统。

免费试用 30 天！
访问eLabJournal

阅读更少
