Is it possible to change centrifugation parameters of Eppendorf Multipupose centrifuge 5920R during a centrifugation run?

Yes, the speed, the time and the temperature can be changed even when the centrifuge is running.

What is the minimum rotational speed (rpm) of Eppendorf Multipurpose centrifuges 5910R / 5910Ri and 5920R and in which increments can it be increased?

The minimum rotational speed is 10 rpm (1 xg), irrespective of the inserted rotor. The minimum rotational speed can be increased in increments of 10 rpm (10 xg) up to 5,000 rpm (3,000 xg). 5,000 – 14,000 rpm (3,000 – 22,132 xg) can be set in increments of 100 rpm (100 xg).

Is it possible to save centrifugation parameters, e.g. in programs, with Eppendorf Multipurpose centrifuge 5920R?

Yes, this is possible. Details can be found in the Operating Manual of the device.

Is it possible to load a rotor of Eppendorf Multipurpose centrifuges 59xx with different kind of buckets in the same centrifugation run, e.g. buckets for tubes and plate buckets?

Yes. This is usually possible. Please find detailed information on this topic in the Operating Manual of the respective device at the Download section of the Eppendorf website.

What does a label, e.g. "6 x 125 g" engraved on a fixed angle rotor (e.g. FA-6x50) of Eppendorf Multipurpose centrifuges 5910R / 5910Ri / 5920R mean?

This label states the max. load of the rotor used. In this example it can be loaded with 6 x 125 gram. "g" is the official abbreviation for "gram". The weight named includes sample solution, tube and adapter used. Each Eppendorf rotor is labelled with this information.

Can rotors, buckets and adapters of Eppendorf Multipurpose centrifuges 59xx be autoclaved?

The fixed-angle rotors, rotor lids and adapters can be autoclaved for 20 minutes at 121 °C. The swing-out rotor crosses can not be autoclaved, but buckets and aerosoltight caps can also be autoclaved for 20 min. at 121 °C Please find details in the Operating Manual of the respective device.

"Does the Centrifuge 59xx have an energy saving function?“

Yes, the ECO shut-off automatically switches off the compressor after 8 hours of non-use (standard setting) or if desired, after 1, 2 or 4 hours. The device has a stand-by button. In standby the 5920 R has an ultra low power consumption of only <2 W.

What is the meaning of the red knob on the rotor lid?

A fixed-angle rotor with a red knob on the rotor lid indicates aerosol-tightness.

Do Eppendorf Multipurpose centrifuges 58xx and 59xx automatically detect the rotor used?

Yes. A new rotor will be detected as soon as it starts moving. Please find details on this topic in the operating manual of the respective device at the Download section of the Eppendorf homepage.

What has to be considered when using rotor S-4x1000 round buckets of Eppendorf Multipurpose centrifuge 5920 R?

When centrifuging 1L bottles in rotor S-4x1000 round bucket, each position of the rotor must be equipped. If only 2 x 1L bottle shall be centrifuged, it is recommended to use 2 x Tara as well in order to reduce vibration and noise. Please find detailed information in the Operating Manual of the device at the Download section of the Eppendorf website.

What is “FastTemp pro”?

With FastTemp pro you can program your 59xx to start the FastTemp run at a defined point of time, once or regularly.

Can software updates for the Eppendorf Multipurpose Centrifuge 5920 R be carried out by the customer?

No. Software updates on 5920 R must be performed by a trained service technician.

Where can the values for the different adapter radii be found if one wants to work with the correct g-force?

One can find the radius of an adapter in the Operating Manual of the respective device. In the chapter technical data the necessary information of the rotor used is stated. The adjustment of the radius is also described in the Operating Manual.

Do you have adapters for conical bottles 175-250 or 500 mL?

Yes. One will find the suitable rotor / adapter combination in the section "Technical data" of the respective devices Operating Manual. When using flat Eppendorf adapters an additional conical insert from the bottles supplier is necessary.

For which centrifuge can we use our mobile tables 5921 000 010 and 5921 000 012?

The mobile tables can be used for centrifuges 59xx as well as 58xx.

text.skipToContent text.skipToNavigation

CN | CNY

未找到任何结果

搜索建议

产品系列

Show all Product Families ()

文章

Show all Articles ()

内容

Show all Content ()

Centrifuge 5920 R - 大型离心机

Q: What is the meaning of the red knob on the rotor lid?

A fixed-angle rotor with a red knob on the rotor lid indicates aerosol-tightness.

Q: Do Eppendorf Multipurpose centrifuges 58xx and 59xx automatically detect the rotor used?

Yes. A new rotor will be detected as soon as it starts moving. Please find details on this topic in the operating manual of the respective device at the Download section of the Eppendorf homepage.

Q: What has to be considered when using rotor S-4x1000 round buckets of Eppendorf Multipurpose centrifuge 5920 R?

When centrifuging 1L bottles in rotor S-4x1000 round bucket, each position of the rotor must be equipped. If only 2 x 1L bottle shall be centrifuged, it is recommended to use 2 x Tara as well in order to reduce vibration and noise. Please find detailed information in the Operating Manual of the device at the Download section of the Eppendorf website.

Eppendorf Rotor FA-6x250 with adapters for Centrifuge 5920 R

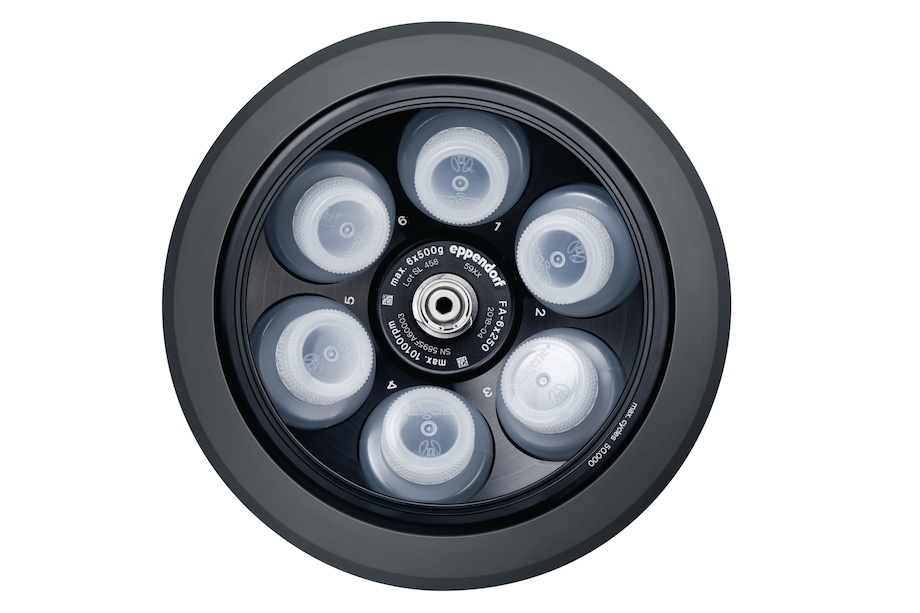

Eppendorf Rotor FA-6x250 with 250 mL bottles for Centrifuge 5920 R

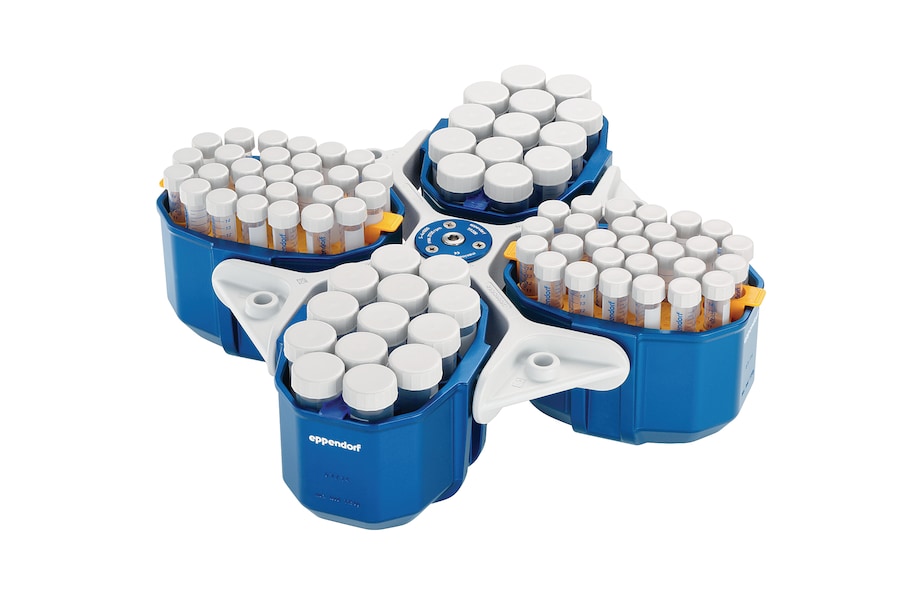

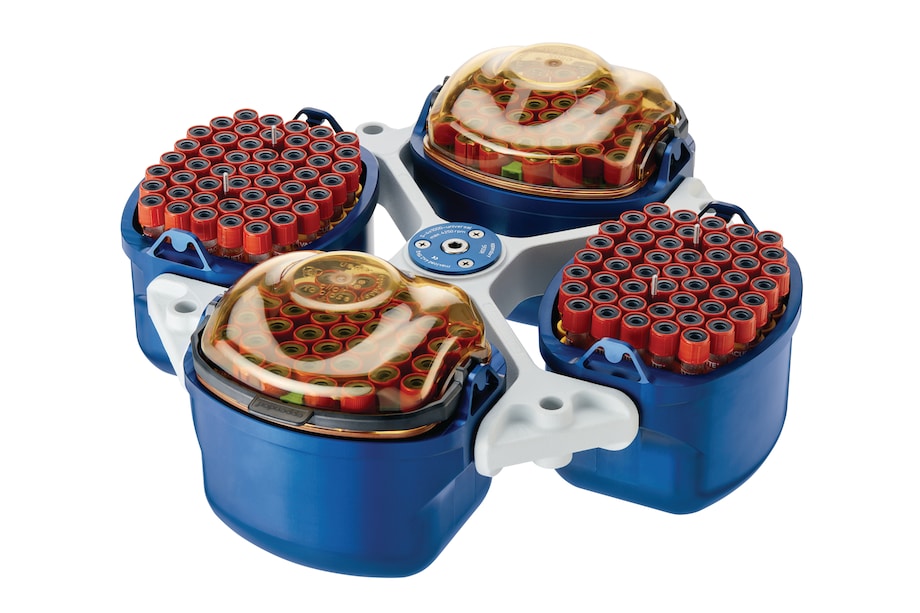

Eppendorf Rotor S-4x1000 for large centrifuges

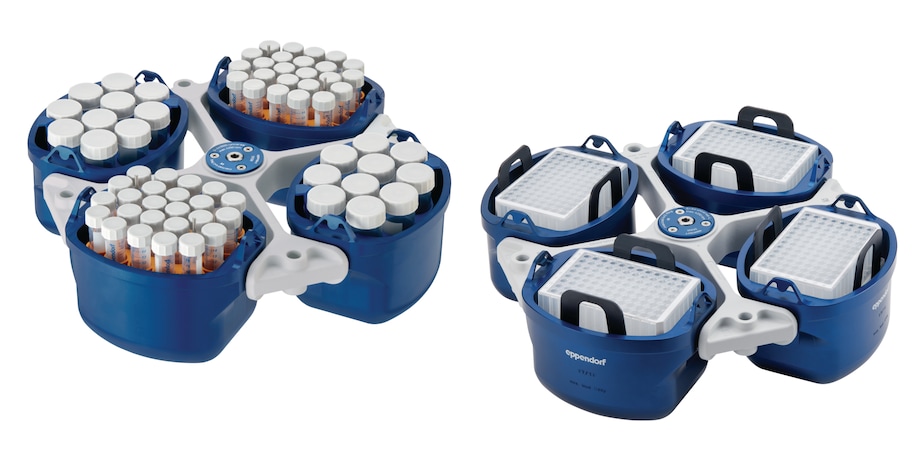

Centrifuge 5920 R Rotor S-4x1000 and S-4xUniversal-Large

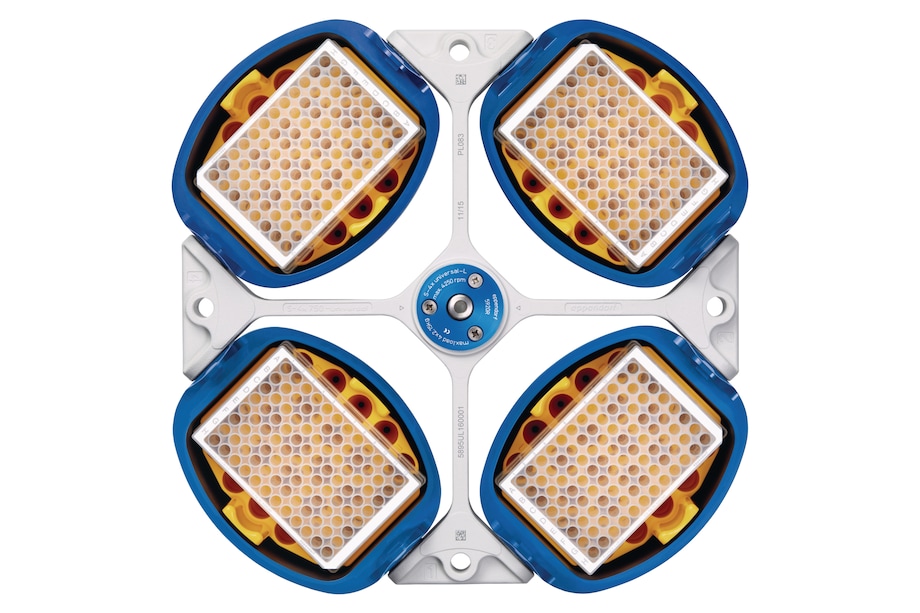

Eppendorf Rotor S-4xUniversal-Large for large centrifuges

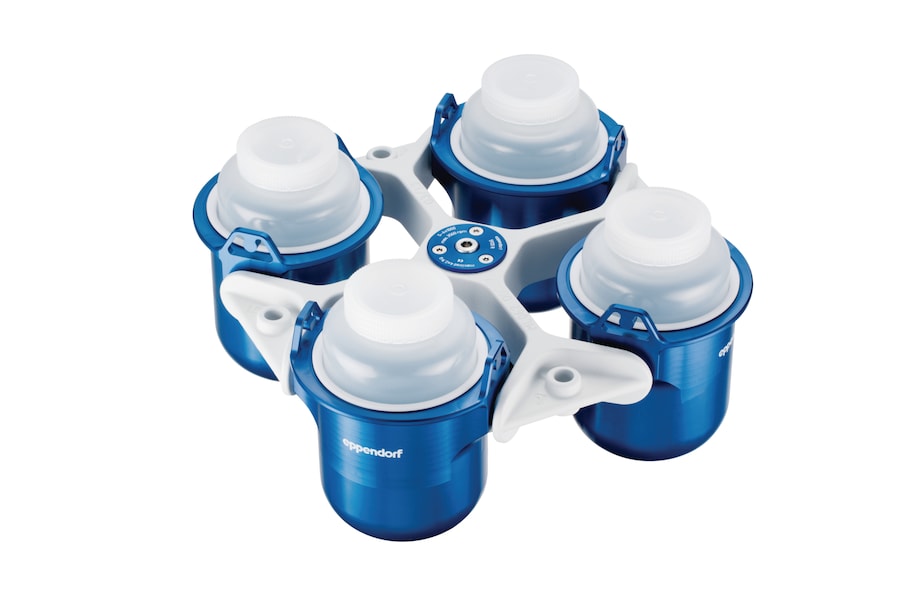

Centrifuge 5920 R Rotor S-4x1000 with round buckets

Eppendorf QuickLock® caps for benchtop centrifuge Centrifuge 5810/5810 R

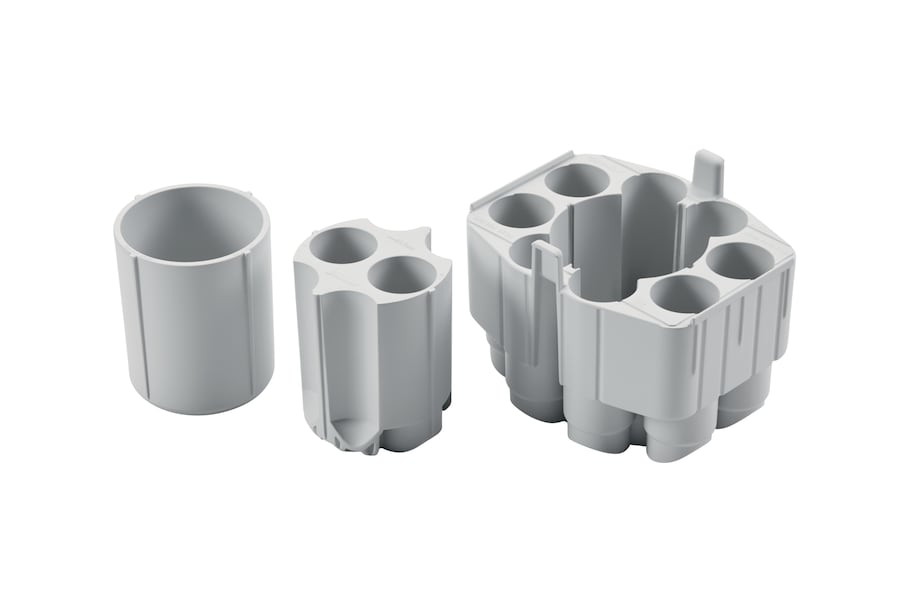

Universal centrifuge rotor adapters for conical tubes, plates and bottles

产品信息

Centrifuge 5920 R 是一款大型台式冷冻离心机，具备卓越性能与超大容量，适用于高通量应用。

显示更多产品信息

Good-design

Scientists choice Awards 2017

索取演示版

您可以在以下网址找到其他下载资料本页面底部

产品 (1)

组合套装 (6)

Services (16)

转子 (9)

附件 (2)

1 产品

离心机 5920 R

按键式, 冷冻型, 不含转子
230 V/50 – 60 Hz (CN)

更多产品详情...

目录编号 5948000093

显示更多产品

已添加到您的购物车

产品信息

技术数据

特征

大型台式离心机Centrifuge 5920 R融合超大容量与紧凑型人体工程学产品设计。它的尺寸与 3 L 冷冻竞品相似，但它能够提供高达 4 x 1000 mL 或 52 x 50 mL 离心管的超大容量。简化高通量离心流程，让日常工作更加愉快。

适用于离心管和工作板的通用吊篮

适用于离心管和工作板的通用吊篮，节省宝贵的时间、金钱和空间。使用 Rotor S-4xUniversal-Large，您只需更换适配器而非转子吊篮，便可离心锥形管、工作板和试剂瓶。无需更换吊篮、使用单独吊篮或存放不同吊篮。

4 升超大容量

Centrifuge 5920 R适配 1 升 Nalgene 标准试剂瓶，为台式离心机领域树立全新标准。与其他定制 1 升试剂瓶相比，Nalgene 试剂瓶较窄，与较宽的试剂瓶相比更能确保颗粒品质。4 x 1000 mL 超大容量让您处理更多样品，无需多次离心。

先进的操作系统

Centrifuge 5920 R将出色的功能与先进的操作系统相结合。该系统搭载菜单驱动的多语言操作菜单以及大尺寸背光显示屏幕，可以保存多达 99 个用户定义程序和 5 个程序键，以方便访问常规程序。FastTemp pro功能可根据预设时间和日期实现快速自动预冷。

您是否拥有 Eppendorf 产品？已经注册了？

您知道吗，每款 Eppendorf 注册产品均可在我们的奖励商店兑换以下?
• 100 点 epPoints^®
• 当您注册离心机、振动试验机、CO2 培养箱或循环仪时，可享受额外 3 个月的保修服务
• 每款注册产品均可参加一次 Eppendorf 独家抽奖活动
• 在 Eppendorf 网站上分享您的个人产品故事

操作非常简单！您可以 -
1. 下载 Eppendor f应用程序，扫描并注册，或者
2. 访问我们的网页，登录 myEppendorf 帐户并输入产品序列号
更多信息敬请访问：www.eppendorf.com/productregistration

废弃产品

包装处置
离心机包装包含不同材料，包括木制托盘、纸板、塑料防尘罩和一些泡沫部件。材料的回收变得越来越重要：您知道欧洲几乎回收所有的纸板材料吗？我们的离心机纸板包装含有约 50%的回收材料。请通过收集冰箱纸板包装材料并将其防止在适当的回收容器中，来支持回收有价值原材料的全球可持续发展倡议。对于LD-PE和泡沫制成的塑料防尘罩，我们建议选择可以回收PE材料的专门回收合作伙伴料。建议联系您当地的废物管理公司或设施管理团队，了解适合贵公司的可用回收方案。

仪器处置
我们的离心机可以使用多年。但如果需要更换，我们建议您根据当地要求，妥善处置此类仪器。我们强烈建议您在具有主动制冷仪器方面具有丰富经验的经认证本地回收合作伙伴。“本地”处理可减少运输影响。由于制冷剂需要以安全、可持续的方式进行移除和回收，建议采用“认证”方式对冷却离心机进行处置。

消毒
该设备用于实验室和/或用于处理生物样品。请记住对需要处理的设备进行充分去污。查看当地要求。有关更多信息，请联系当地的生物安全官员和/或废物管理官员。检查您当地的回收合作伙伴是否有特殊说明和/或文件要求。您也可以使用Eppendorf去污表格作为指导。

阅读更少

规格	5920 R

最大 RCF	21194 × g
最大 RCF，带固定角转	21194 × g
最大 RCF，带水平转子	4791 × g
最大 RCF，带工作板转子	3486 × g
速度	100 – 13,700 rpm
产品类型	离心机
可用转子	9
最大容量	4 × 1,000 mL / 4 × 7 MTP
加速/减速档	10/10
程序数量	99 个应用程序(5个程序按键)
定时器	10 秒至 99 小时 59 分钟, 可连续离心，具备 short-spin 瞬时离心功能
噪音水平	<55 dB(A)
电源	230 V, 50 – 60 Hz
最大能耗	1650 W
尺寸（长x宽x高）	74 × 71 × 40 cm / 29.2 × 27.8 × 15.9 in
占地面积（带/不带前面板的尺寸，WxD）	74 × 67 厘米 /  29.2 × 26.4英寸
产品重量	139 kg / 306 lb
开盖高度	94 cm / 37 in
冷冻型	冷冻型
适用锥形管、工作板和瓶子的通用适配器	是
适用 MTP、PCR 或 DWP 的工作板转子选项	是
适用高转速的固定角转	是
温度范围	-11 °C 至 +40 °C

最大容量
锥形管	10815mL5250 ×  / mL
板	28 ×  MTP / 8 ×  DWP
Blood collection tubes	196 × 13 毫米 / 148 ×  16毫米

噪音水平
转子 FA-6x50	<60 dB(A)
S-4x 通用-大型水平转子	<55 dB(A)
