Centrifuge 5702 R

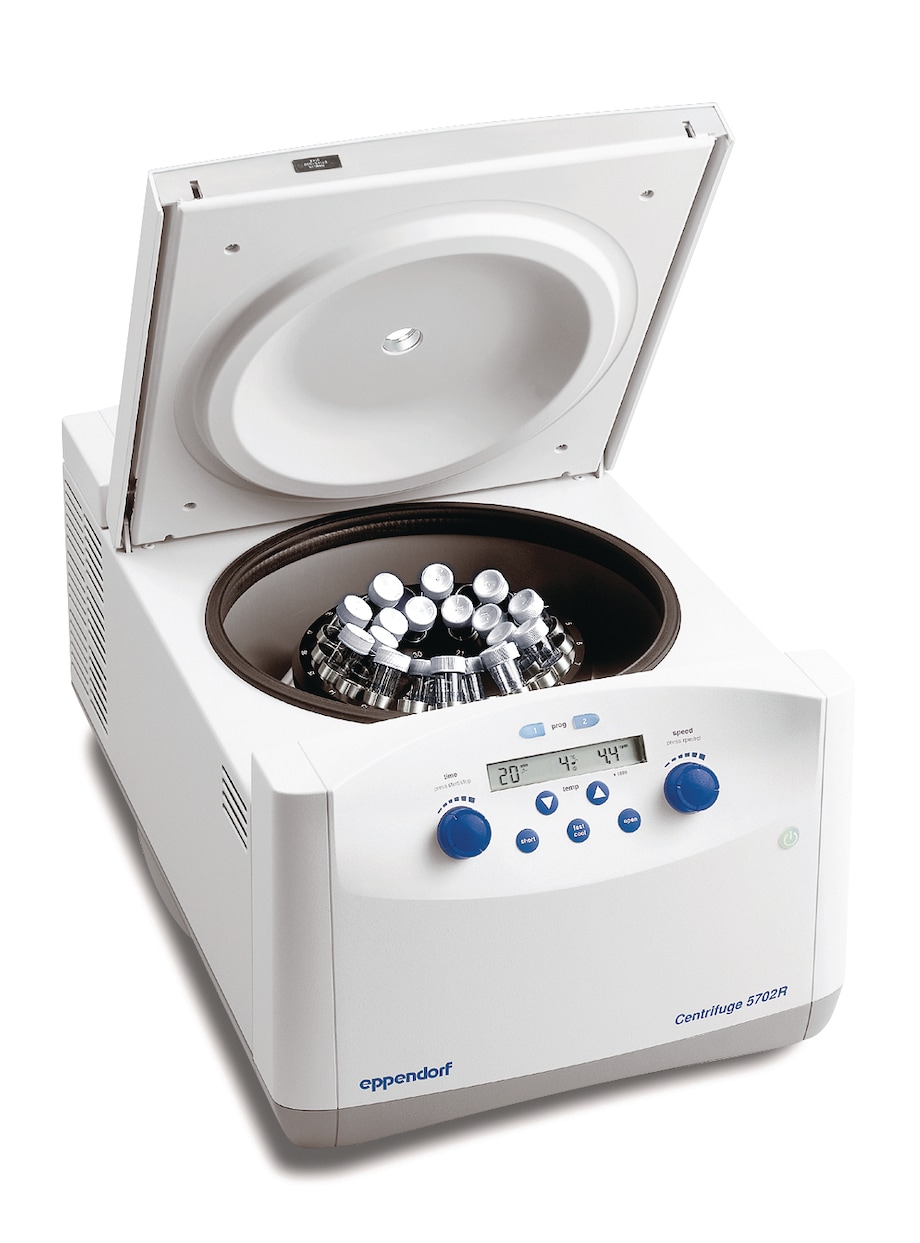

Centrifuge 5702 R open
Product Information
- rotary knobs, refrigerated, without rotor
- 230 V/50 – 60 Hz (GB)
You will find additional download material at the bottom of this page
Technical Data
Features
Technical Data
| Specifications | 5702 R |
|---|
| Max. RCF | 3000 × g |
| Max. RCF with fixed-angle rotor | 1900 × g |
| Max. RCF with swing-bucket rotor | 3052 × g |
| Speed | 100 – 4,400 rpm (100 rpm steps) |
| Product type | Centrifuges |
| Rotors available | 6 |
| Max. capacity | 4 × 100 mL |
| Acceleration time1) | ≤20 s |
| Deceleration time1) | ≤28 s |
| Timer | 0 – 99 min, with continuous run function |
| SOFT brake function | yes |
| Noise level | <46 dB(A) with Rotor A-4-38 |
| Power supply | 230 V, 50 – 60 Hz |
| Max. power consumption | 380 W |
| Dimensions (W × D × H) | 38 × 58 × 27 cm / 15 × 22.9 × 10.6 in |
| Product weight | 35 kg / 77.4 lb |
| Height (with open lid) | 60 cm / 23.4 in |
| Cooling | refrigerated |
| Temperature range | -9 °C to 40 °C |
|
Max. capacity |
|
| Conical tubes | 20 × 15 mL/ 4 × 50 mL |
| Blood collection tubes | 36 × 13 mm/ 30 × 16 mm |
1)Acceleration and deceleration times may vary depending on rotor, load and voltage version.
Features
- Temperature settings from -9 °C to 40 °C
- FastTemp function for fast precooling
- Continuous cooling maintains a constant temperature after the run has been completed – your samples stay cool
- ECO shut-off engages after 8 hours of non-use to reduce energy consumption and extend compressor life
- Two program keys to store routine programs
- Active heating guarantees high temperature accuracy during the entire centrifugation cycle (only 5702 RH)
