With very high speeds up to 110,000 x g, Centrifuge CR30NX reaches g-forces that cross into the range of ultracentrifugation, making it the optimal solution for laboratories with a broad application range. From harvesting of biomass via continuous flow to separation steps of small particles such as viruses, organelles, extracellular vesicles or nanoparticles, the outstanding versatility and performance of this device covers them all.
The innovative 4 x 1.5 L Rotor R9A2 in combination with our unique triangular 1.5 L bottles helps to speed up the biomass harvesting workflow by reducing the amount of bottles that need to be handled. The large touch operation panel with up to 1,000 programs provides quick and easy operation. The user management and documentation function supports customers working in a regulated environment. Additionally, the self-locking rotor system with immediate rotor recognition ensure safe and convenient everyday operation of the device. When placing the rotor on the drive shaft, it is immediately recognized by the centrifuge, leading to the adjustment of the max. rotor speed. Several additional safety features, such as the rotor-cover detection, an imbalance detection or the door-interlock ensure the highest possible user safety.
MENU
PH | PHP
PH | PHP
No results found
Search Suggestions
Centrifuge CR30NX - High-Speed Centrifuge
Centrifuge CR30NX, the 2-in-1 model: suitable for centrifugation steps with super-speed requirements (with vacuum function).

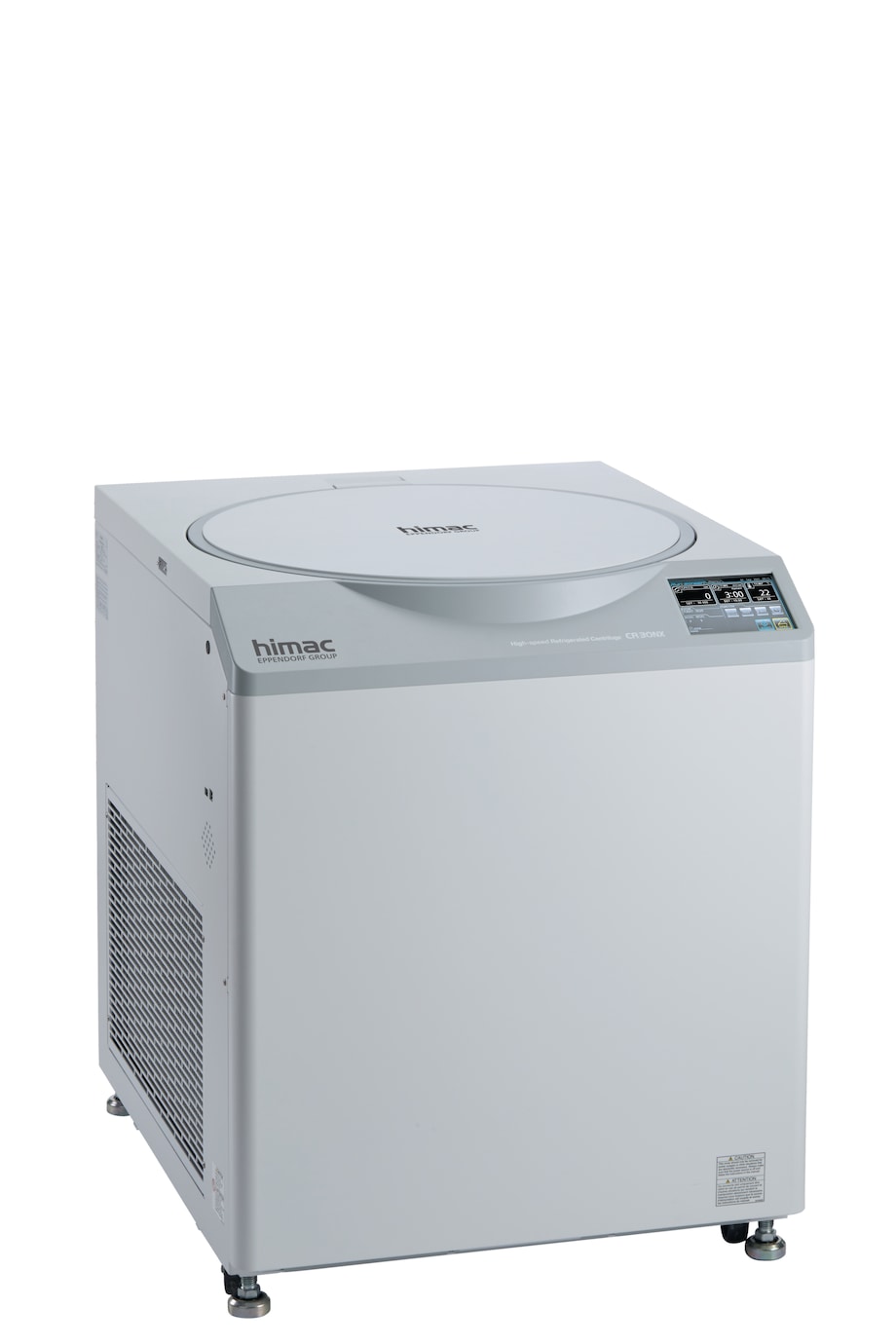

Centrifuge CR30NX closed, frontal
High-speed Centrifuge CR30NX with speeds of up to 110,000 x g.
Centrifuge CR30NX open front view
Centrifuge CR30NX - low access height for an ergonomic operation.
Swing-bucket rotor with speeds of up to 110,000 x g - ideal for densitiy gradient centrifugation.
Centrifuge CR30NX top view with rotor R30AT
Rotor R30AT can reachup to 110,000 x g - ideal for cell fractionation applications in Centrifuge CR30NX.
Centrifuge CR30NX top view with rotor R9A2
Spin 4 x 1.5 L per run and save up to 32% of total processing time due to the unique triangular 1.5 L bottles in rotor R9A2.
Centrifuge CR30NX, key visual, 1.5 L bottles
Centrifuge CR30NX features unique 1.5 L triangular bottle for easy and time efficient harvesting of cell, yeast and bacterial cultures.
Centrifuge CR30NX, man inserting 1.5 L bottle 2
With high speeds up to 110,000 x g, Centrifuge CR30NX reaches g-forces that cross into the range of ultracentrifugation, making it the optimal solution for laboratories with a broad application range.
Rotor R25ST, man closing bucket, lab scene
Rotor R25ST is the ideal solution for pelleting of proteins or the separation of viral particles, exosomes and organelles, requiring high pseeds of up to 110,000 x g.
Easy data export via USB
Rotor R25ST, lab scene 2
Swing-bucket rotor R25ST - reach up to 110,000 x g without the need for an ultracentrifuge.
Rotor colour code, side view Centrifuge CR22N, Centrifuge CR30NX
Automatic rotor ID detection and self-locking rotor system ensure a safe and convenient operation.
Product Information
With very high speeds up to 110,000 x g and a capacity of up to 6 L per run, Centrifuge CR30NX is our premium solution for a large variety of applications up to the "entry level" of ultra-centrifugation. From harvesting of biomass via continuous flow to separation steps of small particles such as viruses, organelles, extracellular vesicles or nanoparticles, the outstanding versatility and performance of Centrifuge CR30NX covers them all.Centrifuge CR30NX
You will find additional download material at the bottom of this page
Products (1)
Sets & Bundles (1)
Services (8)
Rotors (23)
1 Products
|
Show more Products
Added to Your Cart
Product Information
Technical Data
Features
Product Information
Do you need centrifugation speeds of up to 110,000 x g?
Many applications, such as the separation of proteins, viral particles, organelles, exosomes or nanoparticles require high g-forces of up to 100,000 x g. With a swing-bucket and a fixed-angle rotor capable of 110,000 x g, you can now perform high-speed density gradient applications, such as rate zonal or isopycnic as well as cell fractionation applications without the need to switch to an ultra-centrifuge.
Do you want to harvest up to 6 L of biomass – or even more?
You have the choice between two types of 6,000 mL rotors and one continous flow rotor for harvesting even higher volumes of cell or microbiological cultures: Rotor R7A (6 x 1,000 mL) and R9A2 (4 x 1,500 mL), as well as rotor R10C2 (continuous flow).
Are you tired of time-consuming handling steps during the centrifugation protocol?
Our 1.5 L triangular bottle gives you great flexibility: No minimum filling level means you can spin samples between 0 mL – 1.5 L without worrying about bottle stability or the need to fill up your sample with additional media. No need to switch bottles or rotors anymore!
Additionally, the option to spin down up to 6 Liters in just 4 instead of 6 bottles reduces time-consuming handling steps such as switching to smaller rotors and precooling them, but also decanting the supernatant, resuspension of the pellet as well as cleaning the bottles after the centrifugation run.
Read More
Read Less
Technical Data
| Specifications | CR30NX |
|---|
| Max. RCF | 110000 × g |
| Max. RCF with fixed-angle rotor | 110000 × g |
| Max. RCF with swing-bucket rotor | 110000 × g |
| Heat output | 1.2 kW |
| Speed | 300 – 30000 rpm |
| Max. capacity | 6 × 1,000 mL/ 4 × 1,500 mL |
| Number of programs | 1,000 programs |
| Timer | 1 s to 99 min 59 s (in increments of 1 s) with HOLD function or 1 min to 99 h 59 min (in increments of 1 min) with HOLD function |
| Noise level | < 56 dBA |
| Interfaces | 1xUSB, 1xLAN |
| Power supply | 220 V, 50/60 Hz |
| Max. power consumption | 1500 W |
| Dimensions (W × D × H) | 708 × 892 × 866 mm |
| Footprint (dimensions w/o front panel, WxD) | 708 x 892 mm |
| Product weight | 310 kg |
| Cooling | refrigerated |
| Separation example | Very high centrifugation speed of up to 110,000 x g with fixed-angle rotor R30AT (30,000 rpm) and swing-bucket rotor R25ST (25,000 rpm) |
| Temperature accuracy | ±2 °C |
| Acceleration/Deceleration mode |
Acceleration: 11 modes Deceleration: 10 modes with 2 modes variable deceleration slope |
| Drive unit | Induction Motor (Inverter) |
| Refrigerator | Rotary Inverter Driven Compressor (Refrigerant: R410A) |
| Keypad | Touch sensitive LCD panel with GUI icons |
| Safety devices | Door interlock, overspeed detection, imbalance detection, rotor cover detection, over-temperature detection |
| Power requirement |
Single phase: AC200/208/220/230/240 V ±10%, 50/60 Hz, 30 A Three-phase four-wire: AC 380/400/415 V , ±10%, 50/60 Hz, 2 x 16 A1) |
| User lockout function | yes |
| Operating Log Management | yes |
| Economy mode | yes |
| Continuous flow rotor | yes |
| Vacuum system | yes |
| Rotor stop signal | select from 5 melodies, beep and mute |
1)Unbalanced three-phase (two-phase used). Neutral connection required.
Features
- Very high centrifugation speed of up to 110,000 x g with fixed-angle rotor R30AT (30,000 rpm) and swing-bucket rotor R25ST (25,000 rpm)
- Maximum capacity of 6 L (with 4 x 1.5 L unique triangular bottles or 6 x 1 L standard bottles)
- High-resolution 6.5 inch color LCD with 10 different languages
- Multi-lingual operation (10 languages)
- Temperature range: -20 °C to 40 °C
- All rotors maintain 4 °C at maximum rotor speed
- Immediate rotor ID detection and self-locking rotor system
- User management and documentation function
- Rotor cover detection sensor prevents rotors from spinning without rotor covers
- Quiet operation of <56 dB(A) to improve your work environment
