Centrifuge 5702 R (EU-IVD)

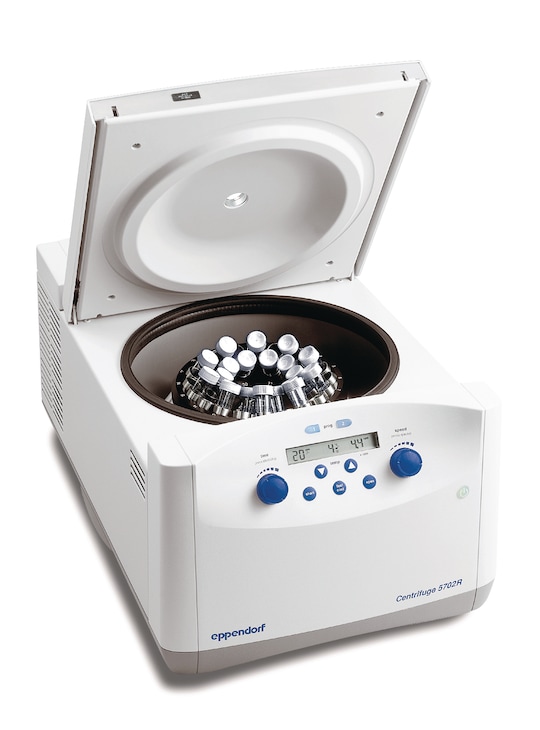

Centrifuge 5702 R open
The Centrifuge 5702/ 5702 R/5702 RH is a non-automatic centrifuge for the separation of liquid substance mixtures from the human body and is specifically intended to be used as an accessory together with an in vitro diagnostic device and to enable its use according to its intended purpose. This product complies with the requirements of the EU In Vitro Diagnostics Regulation (IVDR) 2017/746. Eppendorf centrifuges are exclusively intended for indoor use by trained specialists.
The Centrifuge 5702/ 5702 R/5702 RH is a non-automatic centrifuge for the separation of liquid substance mixtures from the human body and is specifically intended to be used as an accessory together with an in vitro diagnostic device and to enable its use according to its intended purpose. This product complies with the requirements of the EU In Vitro Diagnostics Regulation (IVDR) 2017/746. Eppendorf centrifuges are exclusively intended for indoor use by trained specialists.
-
IVD
Product Information
- rotary knobs, refrigerated, without rotor
- 230 V/50 – 60 Hz (GB)
You will find additional download material at the bottom of this page
Technical Data
Features
Technical Data
| Specifications | 5702 R |
|---|
| Max. RCF | 3000 × g |
| Max. RCF with fixed-angle rotor | 1900 × g |
| Max. RCF with swing-bucket rotor | 3052 × g |
| Speed | 100 – 4,400 rpm (100 rpm steps) |
| Product type | Centrifuges |
| Rotors available | 6 |
| Max. capacity | 4 × 100 mL |
| Acceleration time1) | ≤20 s |
| Deceleration time1) | ≤28 s |
| Timer | 0 – 99 min, with continuous run function |
| SOFT brake function | yes |
| Noise level | <46 dB(A) with Rotor A-4-38 |
| Power supply | 230 V, 50 – 60 Hz |
| Max. power consumption | 380 W |
| Dimensions (W × D × H) | 38 × 58 × 27 cm / 15 × 22.9 × 10.6 in |
| Product weight | 35 kg / 77.4 lb |
| Height (with open lid) | 60 cm / 23.4 in |
| Cooling | refrigerated |
| Temperature range | -9 °C to 40 °C |
|
Max. capacity |
|
| Conical tubes | 20 × 15 mL/ 4 × 50 mL |
| Blood collection tubes | 36 × 13 mm/ 30 × 16 mm |
1)Acceleration and deceleration times may vary depending on rotor, load and voltage version.
Features
- Temperature settings from -9 °C to 40 °C
- FastTemp function for fast precooling
- Continuous cooling maintains a constant temperature after the run has been completed – your samples stay cool
- ECO shut-off engages after 8 hours of non-use to reduce energy consumption and extend compressor life
- Two program keys to store routine programs
- Active heating guarantees high temperature accuracy during the entire centrifugation cycle (only 5702 RH)
