- Heating rate: up to 5 °C/s
- Cooling rate above RT: max. 2.3 °C/s
- Control accuracy: ±0.15 °C
- Innovative 2D-Gradient for advanced PCR optimization
- X50 with Touchscreen can control up to 9 other units (connected cyclers do not have a touch screen interface)
- High pressure Lid
- Small footprint
- Connect up to 50 units when using the CycleManager X50 software
- Transfer your programs with constant parameters from other cycler models
- Warranty: 2 Year warranty
ID | IDR
No results found
Search Suggestions

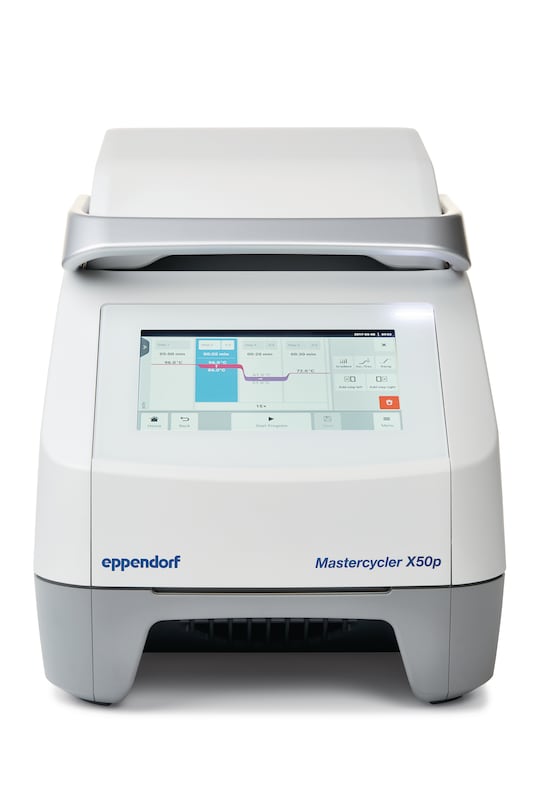

Mastercycler® X50p
Mastercycler X50p
Product Information
- 100 – 240 V/50 – 60 Hz (EU/JP/TW/US/South America)
- aluminum block, 96-well
- high pressure lid
- with touchscreen interface
-
Learn more about sustainability at Eppendorf - incl. how to recognize a sustainable PCR thermocycler
You will find additional download material at the bottom of this page
Technical Data
Features
Technical Data
| Specifications | MC X50p |
|---|
| Unit can control 9 other units in network | ■ |
| Unit can only be controlled | – |
| Thermoblock | Aluminum |
| Sample capacity | 96-well plate |
| 96-well plate | ■ |
| 384-well plate | – |
| 0.1/0.2 mL tubes | – |
| Heating technology | Six peltier elements |
| 2D-Gradient block | over 12 columns and 8 rows |
| Temperature control mode | Fast, Intermediate, Standard, Safe |
| Temperature control range of the block | 4 – 99 °C |
| Gradient range | 1 – 30 °C |
| Gradient temperature control range | 30 – 99 °C |
| Block homogeneity 20 – 72 °C | ≤±0.2 °C |
| Block homogeneity 95 °C | ≤±0.3 °C |
| Control accuracy | ±0.15 °C |
| Product type | PCR |
| Heating rate | 5 °C/s |
| Cooling rate | max. 2.3 °C/s |
| Lid descent | flexlid® technology with thermal sample protection |
| High pressure lid | ■ |
| Lid temperature range | 37 – 110 °C |
| Interfaces | Ethernet, USB |
| Power supply | 100 – 240 V, 50 – 60 Hz |
| Max. power consumption | 850 W |
| Total weight | 11.5 kg |
| Dimensions (W × D × H) | 27,5 × 43 × 33 cm / 10,8 × 16,9 × 13 in |
| Remote Device Monitoring and Notifications (VisioNize®) | VisioNize® touch enabled |
| Touchscreen Interface | yes |
