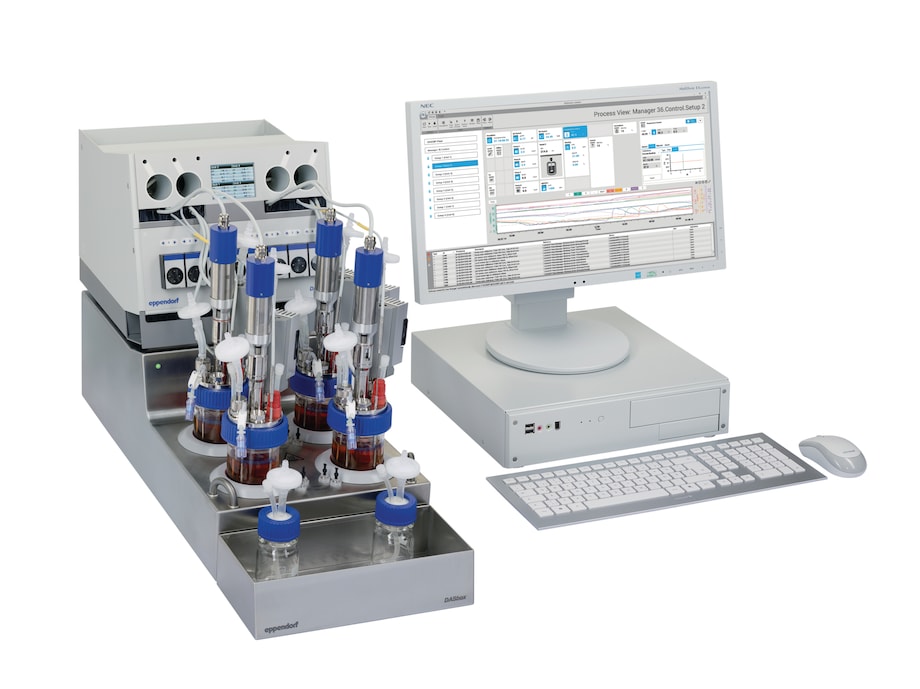

DASbox^® Mini Bioreactor System

Product Information

You will find additional download material at the bottom of this page

Technical Data

Features

Specifications	DASbox^® Cell Culture

Application	Cell culture
Number of parallel units	Up to 24
Software	DASware control, other DASware optional
User Interface	Process computer with monitor
Typical power consumption (4-fold system without process computer)	168 W (at 230 V)/ 154 W (at 115 V)
Dimensions (W × D × H, 4-fold system without process computer)	30 x 70 x 49 cm (12 x 28 x 19 in)
Product weight	44 kg
Typical weight	44 kg
Bacteria/Yeast/Fungi	yes
Mammalian/Animal	yes
Insect	yes
Interchangeable Vessels	yes
Validatable	no
Stem cells	yes

Bioreactors
Vessels	Glass vessels
Sterilization	Autoclavable
Total volume	350 mL

Agitation
Drive	Direct overhead drives
Speed ranges	20 – 2500 rpm
Impellers	Marine

Gassing
Gas supply	TMFC; overlay and/or sparger
Standard gas flow rates	0.04 – 5 sL/h, 0.04 – 3.5 sL/h CO₂
Standard gas mixing	Air, N₂, O₂ and/or CO₂

Feeding
Feed lines per vessel	2 (standard)/ 4 (optional)
Standard feed rates (depending on tube diameter)	0.3 – 9.5 mL/h to 13 – 420 mL/h

Monitoring and Control
Temperature control	Liquid-free heating and cooling (Peltier)
Standard temperature range (at 25° C room temp.)	10 – 60°C
pH control	CO₂/base, and other set-ups
DO control	Cascade (O₂ concentration, gas flow rate), and other set-ups
ORP (redox) measurement	-
Level/foam	Optional
OD measurement	Optional (DASGIP OD4)
Exhaust condensation	Liquid-free (Peltier)
Exhaust analysis	-
