The latest Concentrator plus is a vacuum centrifuge that provides an ergonomic, intuitive, and durable solution, fitting comfortably on any lab bench. The coated lid improves durability by providing chemical resistance against acids and organic solvents. The Eppendorf concentrator Concentrator plus is available in three configurations, designed to meet your individual laboratory needs:
• The basic Concentrator plus system for connection to an external vacuum pump
• The Concentrator plus complete system with an integrated, solvent-resistant, maintenance, and oil-free PTFE diaphragm vacuum pump and condensation trap
• The same Concentrator plus complete system, but with an extra vacuum port added so you can use the integrated pump separately without having to disconnect it
MENU
DE | EUR
DE | EUR
-
- Benchtop Centrifuges
- Floor-Standing Centrifuges
- Refrigerated Centrifuges
- Microcentrifuges
- Multipurpose Centrifuges
- High-Speed Centrifuges
- Ultracentrifuges
- Concentrator
- IVD Products
- High-Speed and Ultracentrifugation Consumables
- Centrifuge Tubes
- Centrifuge Plates
- Device Management Software
- Sample and Information Management
No results found
Search Suggestions
Concentrator plus - a Fast, yet Gentle Vacuum Centrifuge
Eppendorf centrifuge Concentrator plus basic device with Rotor F-45-48-11
Eppendorf-Zentrifuge Concentrator plus: Einzelgerät kann an eine bereits vorhandene Vakuumpumpe angeschlossen werden
Eppendorf Rotor F-45-48-11 for use with centrifuge Concentrator plus
Der Rotor F-45-48-11 für Concentrator plus mit 48 Plätzen für 1,5/2,0-mL-Reaktionsgefäße
Eppendorf Rotor F-45-70-11 for use with Concentrator plus
Der Rotor F-45-70-11 für Concentrator plus mit 70 Plätzen für 1,5/2,0-mL-Reaktionsgefäße
Eppendorf Rotor F-45-8-17 with 15 mL Falcon tubes
Der Rotor F-45-8-17 für Concentrator plus mit 8 Plätzen für konische 15-mL-Gefäße

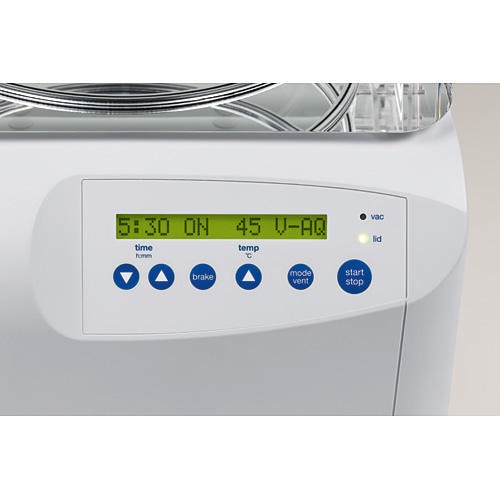

Keypad control on the Eppendorf centrifuge Concentrator plus
Eppendorf Concentrator plus mit Folientastatur zum leichten Reinigen
Versatile benchtop centrifuge concentrators – Concentrator plus
Die Eppendorf-Zentrifuge Concentrator plus ist eine ergonomische, intuitive und langlebige Lösung, die problemlos auf jeden Labortisch passt
Eppendorf Concentrator plus system centrifuge concentrator
Wählen Sie die Eppendorf-Zentrifuge Concentrator plus für eine schnelle, effiziente und schonende Vakuumkonzentration von DNA, RNA, Nukleotiden, Proteinen und anderen flüssigen oder nassen Proben
Eppendorf Rotor F-35-6-30 for use with Concentrator plus
Der Rotor F-35-6-30 für Concentrator plus mit 6 Plätzen für konische 15-mL-Gefäße (17 × 116 bis 123 mm) oder konische 50-mL-Gefäße (29,5 × 116 bis 123 mm)
The Eppendorf centrifuge Concentrator plus Rotor A-2-VC
Der Rotor A-2-VC für Concentrator plus zur Verwendung mit Multiwell-Platten wie z. B. PCR- und Deepwell-Platten bis 27 mm Größe
Product Information
With its advanced heating technology, the Eppendorf Concentrator plus is a vacuum concentrator that facilitates fast, efficient, yet gentle concentration of DNA, RNA, nucleotides, proteins, and other liquid or wet samples. Its coated lid provides superior chemical resistance against many acids and organic solvents.
You will find additional download material at the bottom of this page
Products (2)
Sets & Bundles (2)
epServices (8)
Rotors (15)
Accessories (3)
2 Products
|
|
Show more Products
Added to Your Cart
Product Information
Technical Data
Features
Product Information
Vacuum concentrator with excellent versatility
The Concentrator plus vacuum centrifuge has three main operation modes: Concentrate, centrifuge, and desiccate – to cover all your application needs. Processing times are reduced by up to 20 % thanks to the ability to choose between three application modes that correspond to sample solvent (aqueous, alcohol or high vapor pressure). The choice of four heating levels (ambient, 30 °C, 45 °C, 60 °C) enables safe and efficient concentration of various samples. When working with delicate samples you also have the option to turn off the brake function.
Want to delve deeper into the applications of the EppendorfConcentratorplus?Read our application note.
Rotors to suit a wide range of sample types
Swing–bucket rotor for MTP, PCR, and deep well plates up to 27–mm high (A–2–VC).
Rotor for 48 x 1.5/2 mL microcentrifuge tubes.
Can be stacked using rotor spacer to double the capacity to 96 x 1.5/2 mL tubes (F–45–70–11).
Can be stacked using rotor spacer to double the capacity to 96 x 1.5/2 mL tubes (F–45–70–11).
Rotor for 8 x 15 mL conical tubes (F–45–8–17).
Rotor for 6 x 50 mL conical tubes. Also accommodates 6 x 15 mL conical tubes (F–35–6–30).
Read More
Read Less
Technical Data
| Specifications | Concentrator plus basic | Concentrator plus system | Concentrator plus system w/port |
|---|
| Vacuum | − | 20 hPa (20 mbar) | 20 hPa (20 mbar) |
| Sample capacity | max. 144 vessels/2 microplates | max. 144 vessels/2 microplates | max. 144 vessels/2 microplates |
| Fixed speed | 1400 rpm | 1400 rpm | 1400 rpm |
| Tube volume | 0.2 – 50 mL | 0.2 – 50 mL | 0.2 – 50 mL |
| Product type | Centrifuges | Centrifuges | Centrifuges |
| Port to connect external devices to vacuum pump | no | no | yes |
| Power supply | 230 V, 50 – 60 Hz | 230 V, 50 – 60 Hz | 230 V, 50 – 60 Hz |
| Max. power consumption | 150 W | 350 W | 350 W |
| Dimensions (W × D × H) | 33 × 37 × 23 cm / 12,6 × 14,5 × 9,1 in | 33 × 58 × 29 cm / 12,6 × 20,9 × 11,7 in | 33 × 58 × 29 cm / 12,6 × 20,9 × 11,7 in |
| Product weight | 16,5 kg / 37,5 lb | 31,5 kg / 68,3 lb | 31,5 kg / 68,3 lb |
| Pump | w/o pump | with integrated diaphragm vacuum pump | with integrated diaphragm vacuum pump |
Features
- Concentrator plus comes in 3 system configurations: concentrate, centrifuge, and desiccate
- Very quiet operation <50 dB(A) – around the noise level of a quiet office
- Chemical-resistant, maintenance-free PTFE diaphragm pump eliminates the need for changing pump oil
- Vacuum centrifuge with a small footprint, saving valuable bench space
- Wide variety of 15 different rotor options to accommodate tubes from 0.2 mL to 50 mL, microplates and PCR plates
- Brushless induction drive and chemical-resistant, stainless steel chamber for trouble-free operation
- Can be connected with most commercially available cold traps for use with vapors
- Coated lid with superior chemical resistance
