- Up to 40 % higher flask capacity: e.g., 8 x 5 L Corning®/Thomson Optimum Growth®, 25 x 1 L / 42 x 500 mL / 102 x 125 mL Erlenmeyer flasks (on sticky pad)
- 180 °C sterilization routine integrated: incl. wizard and downloadable performance protocol; no locally restricted UV-airflow/surface-disinfection
- Stainless steel chamber: Hygienic design according to EN ISO 14159:2008 standard plus only few internal parts and no drive wheel, crevices, cables or heating fins inside
- Optimized throughput per lab space: Highest platform size vs. footprint ratio in the market, stackable up to 3-fold
- Saves costs: Always included: slide-out platform, rH-control, touch interface, access port, 180 °C sterilization routine; no UV-lamps that require frequent exchange; low gas and energy consumption
- Eppendorf X-drive: Proven and tested shaker drive with four weight-supporting shafts for 24/7 vibration-free shaking
- Glide-up door and slide-out platform: Saves space and ensures fast and easy experiment setup, cleaning and service – even at the back of the chamber
- Full control and fast root-cause analysis: 7” touchscreen shows all setpoints and current parameters at a glance; direct visual overview of logged data/events incl. door openings and alarms, user management
- Accessories & options: Storage base and feet, various service options incl. IQ/OQ-GxP-service, VisioNize® Lab Suite remote monitoring and more
- Limited time special offer: One year free subscription to VisioNize® Lab Suite Sample Safety+ including SMS notifications, response-based alert escalation, audit trail and more – check availability of VisioNize in your country
CA | CAD
No results found
Search Suggestions

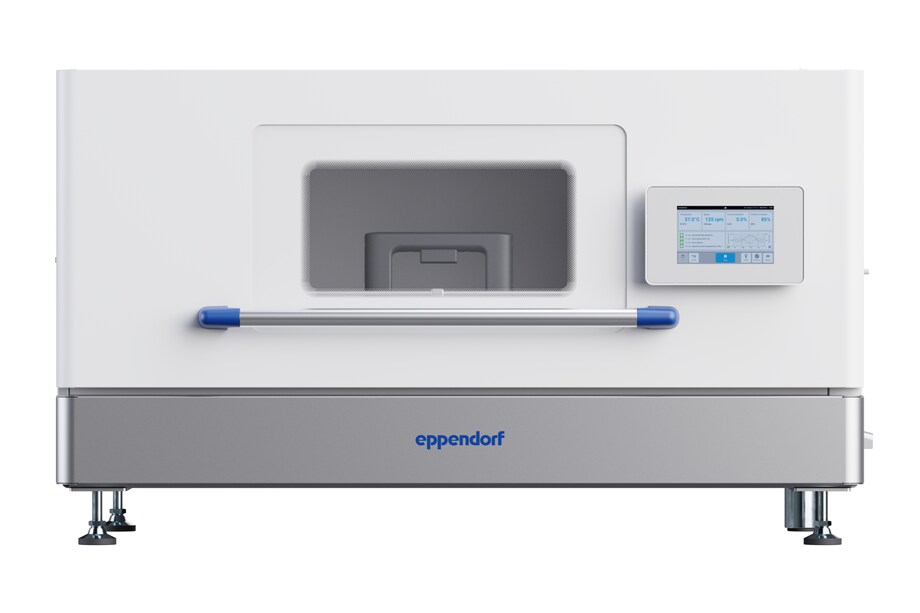

CellXpert® CS220
CellXpert CS220
-
New
Product Information
- CO2 incubator shaker, stackable up to 3-fold
- orbit 2.5 cm (1 in), 20 – 300 rpm
- non-refrigerated, 8 °C above ambient to 60 °C, 100 – 127 V ±10 %, 50 – 60 Hz, JP/US
- Please order separately: platform, clamps, sticky pads, storage base or feet, water supply package; Optional: 1-2 stacking kits and water tank holder
You will find additional download material at the bottom of this page
Technical Data
Features
Technical Data
| Specifications | CellXpert® CS220 – 2.5 cm/1 in orbit |
|---|
| Capacity | 224 L (7.9 ft³) |
| Power supply | 100 – 127 V ±10 %, 50 – 60 Hz |
| Dimensions (W × D × H) | 131.8 × 80.5 × 66.1 cm / 51.9 × 31.7 × 26.5 in |
| Product weight | 240 kg / 529 lb |
| High temperature disinfection (HTD) | 180 °C |
| Sealed inner glass doors | no |
| Segmented door options | – |
| Temperature control increment | 0.1 °C |
| Temperature stability at 37 °C | (à une température ambiante de 22 °C) ±0,1 °C |
| Temperature range | Ambient +8 °C to 60 °C |
| Audible and visual alarms | yes |
| Temperature uniformity | ±0.3 °C at 37 °C |
| CO2 range | 0.1 % – 20 % |
| CO2 control increment | 0.1 % |
| CO2 stability at 5 % CO2 | ±0.1 % |
| Drive mechanism | Eppendorf X-Drive |
| CO2 uniformity | ±0.1 % |
| Number of shelves (standard/max) | – |
| Data export interface | USB, Ethernet, VisioNize® |
| Benchtop (B), Under Bench (U), Floor (F) or Stackable (S) | F, S (x3) |
| Access port | 1 |
| On-board data logging | yes |
| BMS relay | yes |
| Platform size (cm/in) | 51.4 × 93 cm (20.2 × 36.6 in) |
| Refrigerated | no |
| Slide-out platform | yes |
| Door opening | glide up |
| Speed range | 20 – 300 rpm with 2.54 cm (1 in) orbit, 20 – 250 rpm with 5.1 cm (2 in) orbit |
| Capacity | extra large |
| CO2 accuracy | ±0.3% at 5% CO2 |
| CO2 sensor type | NDIR |
| Relative humidity range | Up to 85 % |
| Relative humidity sensor type | bidirectional control |
| Relative humidity accuracy | ±5 % |
| Relative humidity sensor type | Capacitive sensor |
| Relative humidity control increment | 1 % |
| Relative humidity stability | ±2 % |
| Remote Device Monitoring and Notifications (VisioNize®) | VisioNize® touch enabled |
| Temperature range | 8 °C above ambient to 60 °C |
| Temperature accuracy | ±0.4 °C at 37 °C |
|
Agitation |
|
| Orbit | 2.5 cm (1 in) |
| Speed | 20 – 300 rpm |
| Control increments | 1 rpm |
| Control accuracy | ±1 rpm |
