- Up to 15-position worktable
- Volume range from 0.2 to 1,000 µL (depending on dispensing tools used)
- Automatic tool exchange for up to 4 tools
- Optical sensor1) for detecting liquids, labware and tips
- Intuitive drag-and-drop-based software
- Range of features can differ depending on system configuration
- CleanCap option – UV lamp and HEPA filter for decontamination and clean air conditions
- 3 thermal module options for heating or cooling (0 – 110 °C) of samples or reagents
MENU
CA | CAD
CA | CAD
-
- Benchtop Centrifuges
- Floor-Standing Centrifuges
- Refrigerated Centrifuges
- Microcentrifuges
- Multipurpose Centrifuges
- High-Speed Centrifuges
- Ultracentrifuges
- Concentrator
- High-Speed and Ultracentrifugation Consumables
- Accessories
- Tubes
- Plates
- Device Management Software
- Sample and Information Management
No results found
Search Suggestions

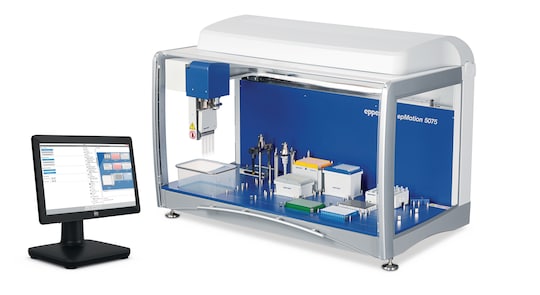

epMotion® 5075l
While stocks last
Product Information
- basic device incl. epBlue software, mouse, waste box
- 100 – 240 V ±10 %/50 – 60 Hz ±5 %, 0.2 µL – 1 mL, and MultiCon all-in-one PC
You will find additional download material at the bottom of this page
Technical Data
Features
Technical Data
| Specifications | epMotion® 5075l |
|---|
|
Eppendorf ThermoMixer® |
|
| Speed | − |
| Time range setting | − |
| Max. load | − |
| Temperature range | − |
| Heating rate | − |
| Cooling rate above RT | − |
| Cooling rate below RT | − |
|
Thermal module |
|
| Max. number of modules | 3 |
| Time range setting | 1 – 120 min |
| Temperature range | 0 °C – 110 °C |
| Heating rate | 9 °C/min |
| Cooling rate | 4 °C/min |
|
Vacuum unit |
|
| Vacuum max. output | − |
| Suction range | − |
| Suction time | − |
| Volume range | 0.2 µL – 1 mL |
| Operating mode | automation |
| Autoclavable | yes (tools) |
| Power supply | 100 – 240 V ±10 %, 50 – 60 Hz ±5 % |
| Consumables | epT.I.P.S. motion tips as racks or reload |
| Max. power consumption | 700 W |
| Dimensions (W × D × H) | 107 × 61 × 77 cm / 42 × 24 × 30 in |
| Product weight | 92 kg / 203 lb |
| SLAS/ANSI positions | 15 |
