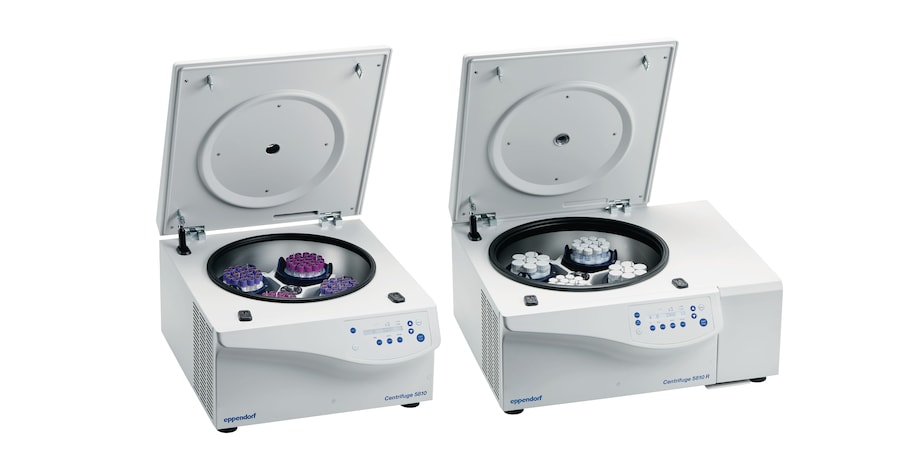

Centrifuge 5810 R

Product Information

You will find additional download material at the bottom of this page

Technical Data

Features

Specifications	5810 R

Max. RCF	20913 × g
Max. RCF with fixed-angle rotor	20913 × g
Max. RCF with swing-bucket rotor	4500 × g
Max. RCF with plate rotor	3486 × g
Speed	200 – 14,000 rpm
Product type	Centrifuges
Rotors available	18
Max. capacity	4 × 750 mL/4 × 4 MTP
Acceleration/braking ramps	10/10
Number of programs	35 user-defined programs
Timer	1 min to 99 min, with continuous run function, short-spin
Noise level	<56 dB(A)
Power supply	230 V, 50 – 60 Hz
Max. power consumption	1650 W
Dimensions (W × D × H)	70.0 × 60.8 × 34.5 cm / 27.6 × 23.9 × 13.6 in
Footprint (dimensions w/o front panel, WxD)	70 × 54 cm /  27.6 × 21.1 in
Product weight	99 kg / 218.3 lb
Height (with open lid)	80 cm / 31.5 in
Cooling	refrigerated
Temperature range	-9 °C to 40 °C

Max. capacity
Conical tubes	56 × 15 mL/ 28 × 50 mL
Plates	16 × MTP/ 4 × DWP
Blood collection tubes	100 × 13 mm/ 80 × 16 mm

Noise level
Rotor FA-45-6-30 (6×50 mL)	<55 dB(A)
Rotor S-4-104 (4×750 mL)	<56 dB(A)
Rotor S-4-72 (4×250 mL)	–
