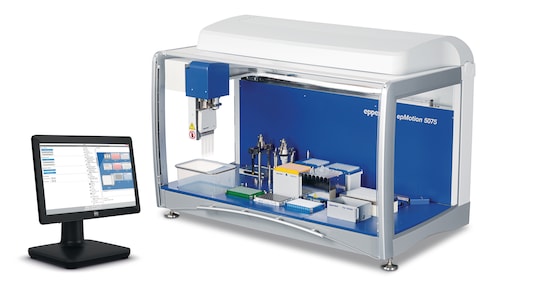

epMotion^® 5075vt

Product Information

basic device incl. vacuum system, gripper, vac frame 2, vac frame holder, Eppendorf ThermoMixer^®, epBlue software, mouse, waste box
100 – 240 V ±10 %/50 – 60 Hz ±5 %, 0,2 µL – 1 mL, (depending on dispensing tools)

You will find additional download material at the bottom of this page

Technical Data

Features

Specifications	epMotion^® 5075vt, basic device

Eppendorf ThermoMixer^®
Speed	300 – 2,000 rpm
Time range setting	30 s – 120 min
Max. load	1,000 g / 2.2 lb
Temperature range	15 °C below RT to 95 °C
Heating rate	5 °C/min
Cooling rate above RT	3 °C/min
Cooling rate below RT	1 °C/min

Thermal module
Max. number of modules	2
Time range setting	1 – 120 min
Temperature range	0 °C - 110 °C
Heating rate	9 °C/min
Cooling rate	4 °C/min

Vacuum unit
Vacuum max. output	35 NL/min
Suction range	0.1 – 85 kPa
Suction time	1 sec to 36 min

Volume range	0,2 µL – 1 mL
Operating mode	automation
Autoclavable	yes (tools)
Power supply	100 – 240 V ±10 %, 50 – 60 Hz ±5 %
Consumables	epT.I.P.S. motion tips as racks or reload
Max. power consumption	700 W
Dimensions (W × D × H)	107 × 61 × 77 cm / 42 × 24 × 30 in
Product weight	97 kg / 214 lb
SLAS/ANSI positions	12
