epMotion 5073 family overview:

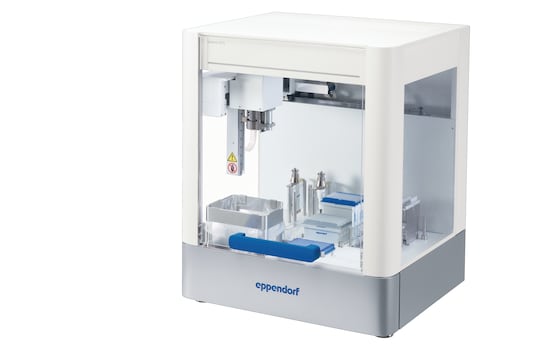

epMotion® 5073l
Why spend valuable time on challenging liquid handling procedures when you can achieve fast, accurate and reproducible results with the epMotion 5073l automated liquid handler? Perfect for medium-throughput setup for PCR and qPCR, DNA/RNA normalization, cherry picking, dilution series and reformatting, the epMotion 5073l helps you perform pipetting tasks with ease and greater efficiency.
epMotion® 5073t
The epMotion 5073t automated liquid handling system allows you to perform fast and efficient NGS library preparation of 1 to 24 samples. It is also ideal for automating more complex, time-consuming liquid handling tasks such as DNA/RNA extraction. Save time and improve the reproducibility of your results with the epMotion 5073t!
epMotion® 5073t NGS Solution
The epMotion 5073t NGS Solution contains everything you need to begin automated NGS library preparation of up to 24 samples. It combines automated liquid handling and unique software features with all the accessories and high-quality consumables needed for reliable low-to-medium-throughput NGS library preparation.
MENU
LT | EUR
LT | EUR
-
- Benchtop Centrifuges
- Floor-Standing Centrifuges
- Refrigerated Centrifuges
- Microcentrifuges
- Multipurpose Centrifuges
- High-Speed Centrifuges
- Ultracentrifuges
- Concentrator
- High-Speed and Ultracentrifugation Consumables
- Accessories
- Tubes
- Plates
- Device Management Software
- Sample and Information Management
- IVD Products
No results found
Search Suggestions
epMotion® 5073
epMotion 5073t NGS Solution, equipped
epMotion 5073t, NGS Solution
epMotion 5073l, equipped
epMotion 5073l, z wyposażeniem
epMotion 5073t with empty deck
epMotion 5073t z pustym obszarem roboczym
Product Information
These automated pipetting systems are perfectly suited for PCR and qPCR setup, nucleic acid purification as well as low-throughput NGS library preparation yet they retain the flexibility for use as open platforms for diverse automated liquid handling applications. The epMotion 5073 series automates and simplifies traditionally complex, labor-intensive pipetting tasks, saving time and improving the reliability and reproducibility of results.epMotion 5073m
You will find additional download material at the bottom of this page
Sets & Bundles (3)
Services (10)
Accessories (87)
3 Sets & Bundles
Catalog no.
5073000110
|
Catalog no.
5073000111
|
Catalog no.
5073000112
|
Show more Products
Added to Your Cart
Product Information
Technical Data
Applications
Features
Product Information
Technical Data
| Specifications | epMotion® 5073l | epMotion® 5073t | epMotion® 5073t NGS Solution |
|---|
|
Eppendorf ThermoMixer® |
|||
| Speed | − | 300 – 2,000 rpm | 300 – 2,000 rpm |
| Time range setting | − | 30 s – 120 min | 30 s – 120 min |
| Max. load | − | 1,000 g / 2.2 lb | 1,000 g / 2.2 lb |
| Temperature range | − | 15 °C below RT to 95 °C | 15 °C below RT to 95 °C |
| Heating rate | − | 5 °C/min | 5 °C/min |
| Cooling rate above RT | − | 3 °C/min | 3 °C/min |
| Cooling rate below RT | − | 1 °C/min | 1 °C/min |
|
Thermal module |
|||
| Max. number of modules | 1 | − | − |
| Time range setting | 1 – 120 min | − | − |
| Temperature range | 0 °C – 110 °C | − | − |
| Heating rate | 9 °C/min | − | − |
| Cooling rate | 4 °C/min | − | − |
| Volume range | 0,2 µL – 1 mL | 0,2 µL – 1 mL | 0,2 µL – 1 mL |
| Operating mode | automation | automation | automation |
| Autoclavable | yes (tools) | yes (tools) | yes (tools) |
| Power supply | 100 – 240 V, 50 – 60 Hz | 100 – 240 V, 50 – 60 Hz | 100 – 240 V, 50 – 60 Hz |
| Consumables | epT.I.P.S. motion tips as racks or reload | epT.I.P.S. motion tips as racks or reload | epT.I.P.S. motion tips as racks or reload |
| Max. power consumption | 400 W | 400 W | 400 W |
| Dimensions (W × D × H) | 68 × 62 × 81 cm / 27 × 25 × 32 in | 68 × 62 × 81 cm / 27 × 25 × 32 in | 68 × 62 × 81 cm / 27 × 25 × 32 in |
| Product weight | 86 kg / 190 lb | 93 kg / 205 lb | 93 kg / 205 lb |
| SLAS/ANSI positions | 6 | 6 | 6 |
Applications
- DNA and RNA purification
- NGS library preparation (small sample numbers)
- PCR/qPCR setup
- Tube to plate transfer
- Plate reformatting
- Serial dilutions
- Cherry picking and normalization
- Sample and reagent transfers
- Sample mixing and tempering
Features
- 6-position worktable
- Volume range from 0.2 to 1,000 µL (depending on dispensing tools used)
- Automatic tool exchange for 3 tools
- Option for gripper, one thermal module or Eppendorf ThermoMixer®
- Optional UV lamp and air filter system for decontamination and clean air condition
- MultiCon PC controller with simulation, network and software upgrade options
- Intuitive drag-and-drop-based software
