The BioFlo 610 is a compact, mobile, pilot-plant fermentor for process development and small-scale production. A modular design and wide variety of standard and optional components provide the flexibility to customize the system to meet your process requirements.
Working volumes
• 16.0 L to 50.0 L
• 32.0 L to 100.0 L
Gas flow control
• Single gas
• Two gas
• Overlay (valve only)
Gas flow
• 1 TMFC, 50 L vessels, 2.0 – 75 SLPM
• 1 TMFC, 100 L vessels, 3.0 – 150 SLPM
• 2 TMFC, 50 L vessels, 2.0 – 75/0.6 - 32 SLPM
• 2 TMFC, 100 L vessels, 3.0 – 150/1.0 - 64 SLPM
Exhaust line
• Exhaust condenser
• Automatic pressure control
Impellers
• Rushton-type, standard
• Pitched-blade, optional
• Marine, optional
Sensors
• Single or redundant pH/DO
• Redox
• Foam/level
Addition and sampling
• Resterilizable sampling valve
• Resterilizable addition valves (4 max)
• 1.5 in sanitary fitting 7-port septum
• Addition vessels (glass/stainless steel)
• Sterile sampling assembly
Documentation packages to support qualification in GMP regulated processes
• Basic Package
• Basic Plus Package
• Enhanced Package
Utility regulator and pre-filter kits
• Process air pre-filter/regulator kit
• Instrument air pre-filter/regulator kit
• Water pre-filter/regulator kit
• Process steam regulator kit
• Utility steam pre-filter/regulator kit
• Utility connection kit
Additional options
• Sprayballs for clean-in-place of vessel
• External variable-speed pumps
• External scales
• Spare parts kits
• Preventive maintenance kits
• System passivation
• Low pressure seal alarm for double mechanical seal
• Glycol/chiller heat exchanger
메뉴
KR | KRW
KR | KRW
BioFlo® 610

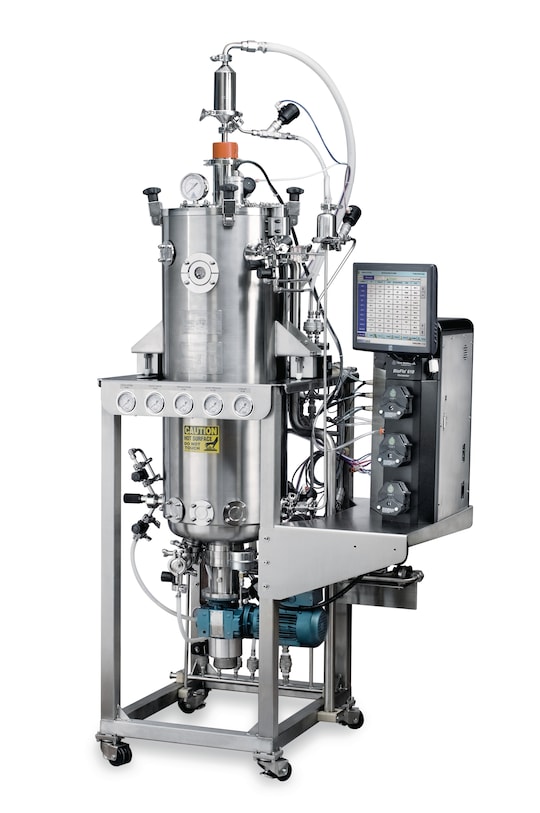

BioFlo 610 right sided view
BioCommand Setup
쿠키가 거부되어 동영상이 로드되지 않습니다. 변경
제품 정보
Pilot production system without the traditional cost or footprint. This modular system is offered with a comprehensive set of standard off-the-shelf options for rapid initial delivery, as well as easy customization at any time, should your process needs change. The entire system is built-on a mobile skid that fits through virtually any doorway, making it easy to move and share between labs in research, pilot plant and GMP environments.이 페이지 하단에서 추가 다운로드 자료를찾을 수 있습니다.
Services (1)
1 Services
|
더 많은 제품 표시
장바구니에 추가됨
제품 정보
애플리케이션
특징
제품 정보
애플리케이션
- Pilot-scale fermentation of aerobic and anaerobic bacteria, yeasts, and fungi
- Suitable for batch, fed-batch, and continuous processes
특징
- RPC (Reactor Process Control) software
- 50 L and 100 L 316L stainless-steel electropolished vessels with 3:1 aspect ratios
- Integrated load cell
- 3-Fixed speed peristaltic pumps for the additions, harvest and pH control
- Mobile design
- Includes rushton-type impellers as standard with pitched-blade and marine blade as optional
- Industrial touchscreen interface
