Where can I find license information about software components of CellXpert C170i?

The software included in CellXpert C170i contains copyrighted software that is licensed under the GPL. A copy of that license is included in the settings of the device under “About this CellXpert C170i”. You may obtain the complete corresponding source code from us for a period of three years after our last shipment of this product. Please direct your request to eppendorf@eppendorf.com. This offer is valid to anyone in receipt of this information.

Cleaning/Disinfection: How should I clean/disinfect my CellXpert incubator?

The recommended disinfecting agent for use with the CellXpert incubator is a solution of 70% isopropanol (isopropyl alcohol) or ethanol and 30% sterile distilled water. Carefully follow the cleaning guidelines described in your user’s manual. If you have any further questions regarding the cleaning and disinfection procedure please contact your local distributor: www.eppendorf.com/contact .

High temperature disinfection (HTD): what is the maximum temperature that is achieved during the HTD cycle of CellXpert incubators?

The maximum temperature of the HTD cycle is 180°C (CellXpert C170i) and 140°C (CellXpert C170) respectively.

Data Export: Can I export performance data from CellXpert incubators?

The CellXpert C170i is equipped with two USB ports on the front panel for quick and easy data export. In addition, you can remotely monitor the status of your CO 2 incubator within the VisioNize ® lab system.

Direct Heating Advantages: I am hesitant to move from a water-jacketed incubator to a direct heat system. Why should I switch?

While water-jacketed (WJ) incubators have, in the past, been suitable for generalized cell culture, they truly are an outdated technology. WJ incubators are bulky, often taking up valuable lab space, offer less capacity in relation to that space, have lower performance and control, are difficult to maintain and do little to prevent contamination. High-temperature disinfection is also not possible in WJ designs. The direct-heat design provides an innovative solution to these issues and is ideal for culture in today’s laboratory.

Maintenance: Are there any parts which should be regularly renewed on my CellXpert?

The filter in the gas supply line should be replaced once per year.

Temperature Control: What is the temperature range for your CO2 Incubators?

The temperature on Eppendorf direct-heat incubators is 4 °C above ambient temperature to 50 °C.

Which safety measures do you recommend regarding the handling of CO 2 and N 2 in the laboratory?

When CO 2 and/or N 2 concentration in the air is too high there is a risk of suffocation. Performing a risk assessment is strongly recommended, independent of the existing national guidelines, if incubators are operated with gases. We recommend implementing measures against the identified dangers, for example: - Measures that issue an alert when critical gas concentration is reached in the laboratory (gas detectors) - Measures that ensure air exchange (ventilation systems) both during normal operation and when a critical gas concentration is reached in the laboratory

Can the door hinge of the CellXpert C170 and C170i be changed from left to right or vice versa?

Yes, the door hinge can be changed directly in your laboratory.

Why should I have my incubator serviced at regular intervals?

Eppendorf Performance Plans offer a selection of preventive maintenance services which ensure a consistent performance of the device and confidence in the results.

How often does my incubator need to be serviced?

This depends on how intensively it is used and varies depending on the load on the device. However, we recommend to have it serviced at least once a year.

What do you need to look out for before carrying out a service?

The device needs to be decontaminated first. The device must be freely accessible and all samples removed from the device. You should also ensure that the device has cooled down already.

What types of service programs are available for incubators?

The available service programs can be found under the respective instrument in the Service & Support / Maintenance and Certification Services section.

How much are the different incubator service programs?

The cost depends on the model and on the service that is performed. Please contact your local Eppendorf Service. www.eppendorf.com/contact

Please contact your local Eppendorf Service Team. You find the contact data on our homepage or in the information materials. www.eppendorf.com/contact

What is IQ or OQ and what do I need them for?

Installation and operational qualification; the IQ documents that the device has been delivered and installed correctly. The OQ checks the correct functioning of a device. IQ/OQ ensure that your quality management requirements are met and that your device operates properly and in accordance with the manufacturer’s specifications.

How often does the OQ need to be carried out for an incubator?

The company is responsible for technical checks of devices. Eppendorf recommends regular device qualifications depending on the intensity of use, however, they should be carried out at least once a year.

How can my incubator be cleaned/ disinfected?

Use a solution of 70% isopropanol (isopropyl alcohol) and 30% distilled water as a disinfectant. Follow the cleaning guidelines carefully that are described in your user manual.

Which parts of the incubator should be replaced at regular intervals?

Replace the HEPA filter of the CO 2 supply line and the HEPA filter with automatic zero setting * at least once a year. (* Auto-zero filter is only used in R-models.)

What types of training or online training do you offer to enable me to improve my skills?

Please visit the Eppendorf webpage about the Eppendorf Training Center or contact your local Eppendorf Service for further information and a quotation. www.eppendorf.com/training

text.skipToContent text.skipToNavigation

AR | ARS

No results found

Search Suggestions

Product Families

Show all Product Families ()

Article

Show all Articles ()

Content

Show all Content ()

CellXpert^® C170i - Cell Culture Incubator

Cell culture incubator CellXpert® front view with touch interface

Cell culture incubator with seamless chamber

Stacked cell culture incubators CellXpert®

VisioNize® touch interface on cell culture incubator CellXpert C170i

Lab technician with cell culture incubator CellXpert® filled with cell culture plates and flasks

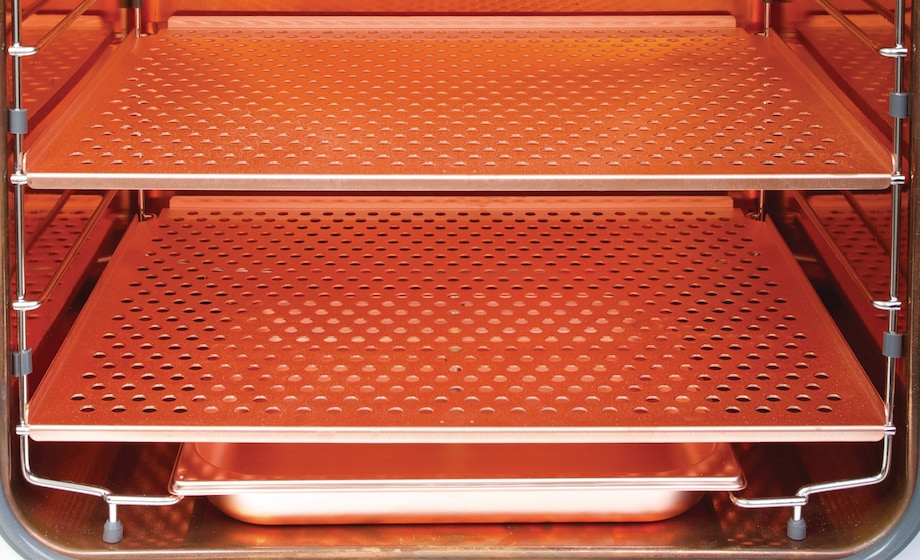

Copper shelves and water tray for cell culture incubator CellXpert®

Graph showing fast gas and temperature recovery < 5 min without setpoint overshoot

Graph - Costs for N2 and CO2 in cell culture incubator CellXpert® C170i for hypoxic conditions in 5 years

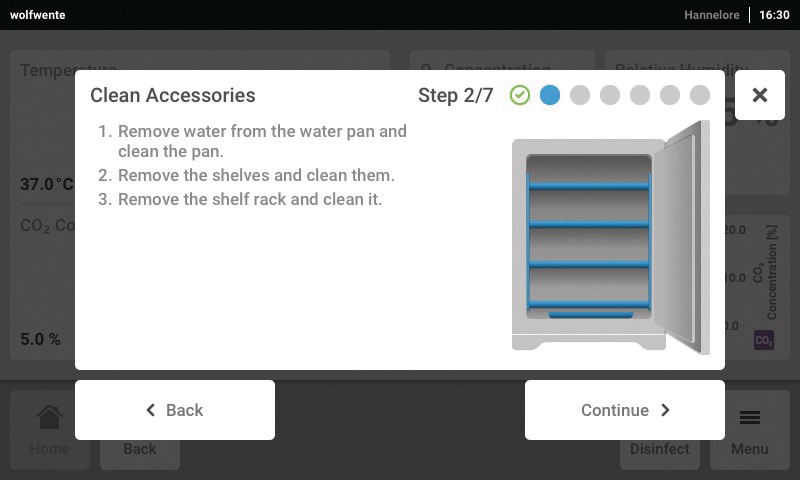

Standardized cleaning of your cell culture incubator CellXpert® C170i is made easy with an illustrated step-by-step guide

CO2 cell culture incubator CellXpert® door handle

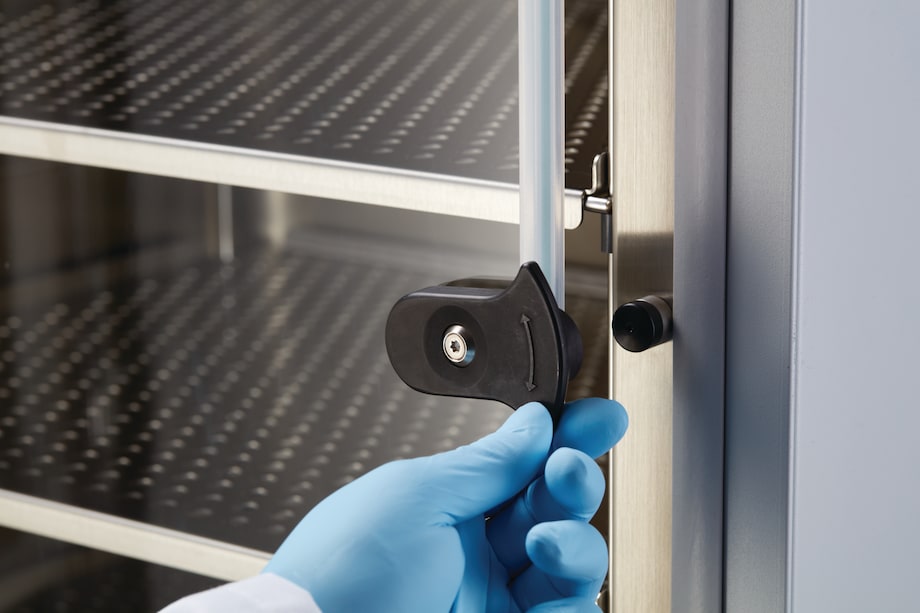

Inner door latch of CellXpert® C170i with new magnetic closing system

Product Information

Cell culture incubator CellXpert^® – Culture of Tomorrow

Are you looking for a 170 L cell culture incubator that is easy to clean and delivers optimized growth conditions, even for your sensitive cells? The GMP/GLP-compatible CellXpert C170i is more than just that. It also helps to reduce the running costs of your lab significantly and it provides flexibility for different future lab setups and applications – with many in-field upgradeable options.

Show more Product Information

Good-design

Want to Know More? Contact Our Experts

You will find additional download material at the bottom of this page

Product Information

Technical Data

Features

Cell culture incubator CellXpert^®^_Culture of Tomorrow

Today's cell culture requires more than technical solutions for optimized growth conditions and efficient contamination prevention.

The CellXpert^® CO₂ incubator family are the first cell culture incubators engineered and produced by Eppendorf in Hamburg, Germany. They were designed with the needs of modern industrial and academic cell culture labs in mind - to reduce time-to-market or publication with minimal efforts and resources. The development of the CellXpert^® family integrates e.g. the learnings from decades of using standard fan-assisted cell culture incubators in cell culture labs. They are the perfect partner for demanding applications like assay-development or culture of stem cells, primary cells or tissues. Read more and see more videos and papers below.

• Would you like to compare the CellXpert^® with cell culture incubators of other manufacturers in more detail?

• Are you interested in an individual quote or in seeing the CellXpert^® live?

• Get in contact with us today to improve your cell culture work.

Easy cleaning, reliable contamination prevention

Prevention of lab downtime and sample loss is essential for you to deliver cell culture results in time? You cannot afford to spend too much time and money on standardized cleaning of your cell culture incubator, documentation or on changing costly, non-sterilizable, fan-associated HEPA filters?

Contamination prevention with CellXpert^® CO₂ incubators follows a simple concept: If it's easy to do, it's more likely to get done.

• 180 °C high temperature disinfection with illustrated step-by-step instructions on screen and downloadable performance protocol for standardized procedures
• Minimal internal incubator parts removed in 40 s and wiped quickly
• Nowhere to hide for contaminants and cleaned fast: Smooth, seamless incubator chamber
• Fanless design
• No non-sterilizable fan-associated HEPA filters that can become potential contamination sources
• Options for copper and segmented inner doors for additional protection

Learn more: Video – Easy cleaning and reliable contamination prevention with CellXpert CO2 incubators

Fanless incubator design = No costly, fan-associated internal HEPA filters

One of the strongest contamination protectors in the CellXpert is the fanless design. It effectively reduces the spread of airborne contaminants and therefore eliminates the need for fan-associated internal HEPA filters.

Generally, HEPA filter cartridges are heat-sensitive and need to be removed before starting an HTD. For reinstallation of the HEPA filter (that traps particles, but does not destroy them), extended door opening and reaching inside the clean chamber a full arm´s length is necessary. These factors pose a high risk of introducing new contaminants into the incubator.

The CellXpert cell culture incubator reduces significant recurring costs for fan-associated HEPA filters that must be replaced regularly – while offering strong contamination protection.

Do you need a fan for fast atmosphere recovery after door opening and spatial homogeneity?

Fanless cell culture incubators have always been a solid choice for customers with a high demand for easy cleaning, effective contamination prevention, and protection from vibrations and air turbulences. Also, the reduced number of internal parts compared to fan-assisted cell culture incubators (e.g. ducts, filters, fan itself etc.) is advantageous regarding optimal use of space inside. In the past, however, fast atmosphere recovery after door opening and spatial homogeneity compared to fan-assisted cell culture incubators have always been a challenge.

The new CellXpert^® solves this former disadvantage by implementing various technologies: multiple, independent temperature sensors (see section below), as well as advanced microprocessor and gas control.

The result: The CellXpert^® cell culture incubators can easily compete with fan-assisted devices regarding recovery and spatial homogeneity of CO₂ and temperature (see below).

Optimized cell growth conditions for reproducible results

You cannot afford to spend time, money, or valuable source material on additional experiments due to insufficient reproducibility? You can reduce time-to-market or time-to-publication with CellXpert^® cell culture incubators by standardized procedures and:

• Precise temperature uniformity throughout the incubator chamber, verified at 27 spots inside based on German Norm DIN 12880
• Fast gas and temperature recovery < 5 min without setpoint overshoot
• Protection from vibrations and turbulence with fanless incubator design, so cell culture vessels can also be located on the top shelf
• State-of-the-art dual channel IR-sensor for CO₂ control and platinum-coated ZrO₂ sensor for variants with O₂ control (both sensors are high temperature resistant)
• Dedicated IQ/OQ and Eppendorf service contracts

Multiple temperature sensors at various locations inside the incubator

To accurately compare cell growth in vessels at different locations inside the incubator, the temperature needs to be highly uniform. Together with advanced microprocessor control, this is achieved in CellXpert^® cell culture incubators by replacing the traditional configuration of one or two temperature sensors (the second almost always just used to control for overtemperature) with multiple, independent sensors in different locations. The effectivity of this novel approach has been verified by measuring the temperature deviation among 27 spots inside the incubator based on the German Norm DIN 12880 – and far exceeding the requisite specification.

Does it matter where you put the vessels inside your cell culture incubator?
Learn more: White Paper about CO₂ incubator homogeneity

Do you cultivate cells on the top shelf of your fan-assisted cell culture incubator?

Afraid of vibrations or increased medium evaporation?

Have you ever experienced variations between cells grown in vessels on different shelves of your cell culture incubator, especially between the top shelf and others?

These differences can be caused by air turbulences that disrupt the protective micro-atmosphere above the medium. Air turbulence can be generated by fans used to circulate the atmosphere inside standard CO₂ incubators. Additionally, uneven cell growth can occur because the fan may cause the vessels to vibrate – especially in the case of sensitive cells. These effects can be avoided with fanless CO₂ incubators like the CellXpert. Air circulation via convection provides uniform temperatures, fast recovery, and conditions without the risks due to a fan. Enjoy peace of mind using the top shelf and use more valuable space.

Save up to 8300 € / 9000 $ over five years and cell culture lab space

Did you know that running costs for a CO₂ incubator easily exceed its purchase price over time?

Some costs are significant but not always obvious at first glance: regular replacement of fan-associated HEPA filters or UV lamps, loss of lab space because of low vessel capacity vs. footprint ratio, high incubator gas consumption, or lack of flexibility for future lab needs. Also, increased lab downtime risk and potential sample loss due to unreliable contamination prevention can add significant costs.

CellXpert^® cell culture incubators provide answers to these challenges by:

• Saving lab space: Up to 25 % more usable space in a small footprint (no additional interior parts like fan, air ducts, HEPA filters etc.)
• Saving up to 1000 € / 1100 USD in five years - No internal expendable parts like fan-associated HEPA filters or UV lamps
• Significantly lower CO₂ and O₂ consumption by smart gas control
• Up to over 7300 € / 8180 USD less gas consumption in five years for low O₂ experiments
• Get features you need at the time you need them – with many upgradeable options
• Long-lasting quality – Made in Germany
• Many features and accessories already included: 4 shelves, dual-channel IR-sensor for CO₂ control (instead of TC-sensor), two access ports etc.

Learn more: White Paper - How to Save Money with CellXpert CO2 incubators

Stay flexible for the future of your cell culture lab

Will it become necessary to rearrange your cell culture lab, move it to a new location altogether or perform experiments under different atmospheric conditions?
Over an average incubator lifetime, a laboratory setup can change several times, especially in fast growing companies. Often, experimental demands also change over time. CellXpert^® C170i cell culture incubators can be tailored according to changing needs. This reduces costs by upgrading features only when they become necessary. Enjoy peace of mind by knowing that your investment can be adapted to changing needs and requirements of your cell culture lab. Stay flexible for the future!

Upgradeable options:
• Door handle changeable in field from right <> left
• O₂ control for hypoxic experiments (e.g. for stem cells or cancer research)
• Pre-installed access ports for in-incubator experiments with user-validated devices
• 4/8-segmented inner door
• Water level monitoring and relative humidity monitoring

Smart cultivation and easy documentation – with VisioNize^®

Establish specific cell-conserving user habits in your lab and relieve yourself from the burdens of daily routines.

• VisioNize^® touch interface for fast and continuous navigation
• Step-by-step wizard for standardized cleaning
• Filter and export performance charts, events, or HTD-protocols within seconds via Ethernet or front USB-ports
• Pre-installed and customer-programmed reminders, e.g. for performance of a disinfection cycle, cleaning, splitting cells, refilling the water reservoir, or performance checks with external sensors.
• Integrated alarm system to define critical values e.g. door-opening time or gas concentration that trigger a highly visible on screen and audible alarm
• SMS or email notifications by VisioNize notifications
• Set permissions and restrictions with on-board VisioNize^® user management
• Remote Device Monitoring and Alert Notifications with VisioNize^® Lab Suite

Efficient lab and device management with VisioNize^® Lab Suite

Are you interested in monitoring your lab devices and receiving notifications e.g., for device alarms? A digital, connected lab offers even more.

Gain access to a modular range of digital services and choose what works for your lab. VisioNize Lab Suite offers everything you need as a Lab Manager or Scientist to get started to digitally manage your lab for increased sample security, compliance needs and maintenance management.

Chart your own course to digital lab excellence! Find out more

Reduce stress with the PhysioCare Concept^®

Working in a cell culture lab is often associated with physical and psychological stress (e.g. working under time constraints, high noise and poor ergonomics; constant disinfection and care to avoid contamination; processing of many samples per day; and handling of various cell culture vessel types). This stress not only reduces your well-being and can lead to errors in the workflow, but could also contribute to illness in the long term. CellXpert^® cell culture incubators were developed for more comfort and convenience in mind – with the Eppendorf PhysioCare Concept^®:

• Unique magnetic closure concept and robust outer door handle
• Dual direction inner incubator door latch - simply pulled or turned to open, pushed or turned to close
• Almost silent operation

Read Less

Specifications	CellXpert^® C170i, inner door with 4 door segments	CellXpert^® C170i, inner door with 4 door segments	CellXpert^® C170i, inner door with 8 door segments	CellXpert^® C170i, inner door with 8 door segments	CellXpert^® C170i, non-segmented inner door	CellXpert^® C170i, non-segmented inner door

Capacity	170 L (6,0 ft³)	170 L (6,0 ft³)	170 L (6,0 ft³)	170 L (6,0 ft³)	170 L (6,0 ft³)	170 L (6,0 ft³)
Power supply	220 – 240 V, 50 – 60 Hz	100 – 127 V, 50 – 60 Hz	220 – 240 V, 50 – 60 Hz	100 – 127 V, 50 – 60 Hz	220 – 240 V, 50 – 60 Hz	100 – 127 V, 50 – 60 Hz
Dimensions (W × D × H)	71,8 × 71,5 × 90,0 cm / 28,3 × 28,1 × 35,4 in	71,8 × 71,5 × 90,0 cm / 28,3 × 28,1 × 35,4 in	71,8 × 71,5 × 90,0 cm / 28,3 × 28,1 × 35,4 in	71,8 × 71,5 × 90,0 cm / 28,3 × 28,1 × 35,4 in	71,8 × 71,5 × 90,0 cm / 28,3 × 28,1 × 35,4 in	71,8 × 71,5 × 90,0 cm / 28,3 × 28,1 × 35,4 in
Product weight	113 kg / 249 lb	113 kg / 249 lb	113 kg / 249 lb	113 kg / 249 lb	113 kg / 249 lb	113 kg / 249 lb
High temperature disinfection (HTD)	180 °C	180 °C	180 °C	180 °C	180 °C	180 °C
Sealed inner glass doors	yes	yes	yes	yes	yes	yes
Segmented door options	4 segments	4 segments	8 segments	8 segments	1 segment	1 segment
Temperature control increment	±0.1 °C	±0.1 °C	±0.1 °C	±0.1 °C	±0.1 °C	±0.1 °C
Temperature stability at 37 °C	±0.1 °C	±0.1 °C	±0.1 °C	±0.1 °C	±0.1 °C	±0.1 °C
Temperature range	Ambient +4 °C to 50 °C	Ambient +4 °C to 50 °C	Ambient +4 °C to 50 °C	Ambient +4 °C to 50 °C	Ambient +4 °C to 50 °C	Ambient +4 °C to 50 °C
Temperature uniformity	±0.3 °C	±0.3 °C	±0.3 °C	±0.3 °C	±0.3 °C	±0.3 °C
CO₂ range	0.1 – 20 %	0.1 – 20 %	0.1 – 20 %	0.1 – 20 %	0.1 – 20 %	0.1 – 20 %
CO₂ control increment	±0.1 %	±0.1 %	±0.1 %	±0.1 %	±0.1 %	±0.1 %
CO₂ stability at 5 % CO₂	±0.1 %	±0.1 %	±0.1 %	±0.1 %	±0.1 %	±0.1 %
CO₂ uniformity	±0.1 %	±0.1 %	±0.1 %	±0.1 %	±0.1 %	±0.1 %
Number of shelves (standard/max)	4/8	4/8	4/8	4/8	4/8	4/8
Max. load/shelf	10 kg	10 kg	10 kg	10 kg	10 kg	10 kg
Max. load/rack	40 kg	40 kg	40 kg	40 kg	40 kg	40 kg
Data export interface	USB, Ethernet, VisioNize^®	USB, Ethernet, VisioNize^®	USB, Ethernet, VisioNize^®	USB, Ethernet, VisioNize^®	USB, Ethernet, VisioNize^®	USB, Ethernet, VisioNize^®
Benchtop (B), Under Bench (U), Floor (F) or Stackable (S)	B, U, F, S (x2)	B, U, F, S (x2)	B, U, F, S (x2)	B, U, F, S (x2)	B, U, F, S (x2)	B, U, F, S (x2)
Copper package	no	no	no	no	no	no
Access port	2	2	2	2	2	2
On-board data logging	yes	yes	yes	yes	yes	yes
Water/Humidity monitoring	no	no	no	no	no	no
BMS relay	yes	yes	yes	yes	yes	yes
Temperature range	Ambient +4 °C to 50 °C	Ambient +4 °C to 50 °C	Ambient +4 °C to 50 °C	Ambient +4 °C to 50 °C	Ambient +4 °C to 50 °C	Ambient +4 °C to 50 °C
Temperature accuracy	±0.4 °C	±0.4 °C	±0.4 °C	±0.4 °C	±0.4 °C	±0.4 °C
